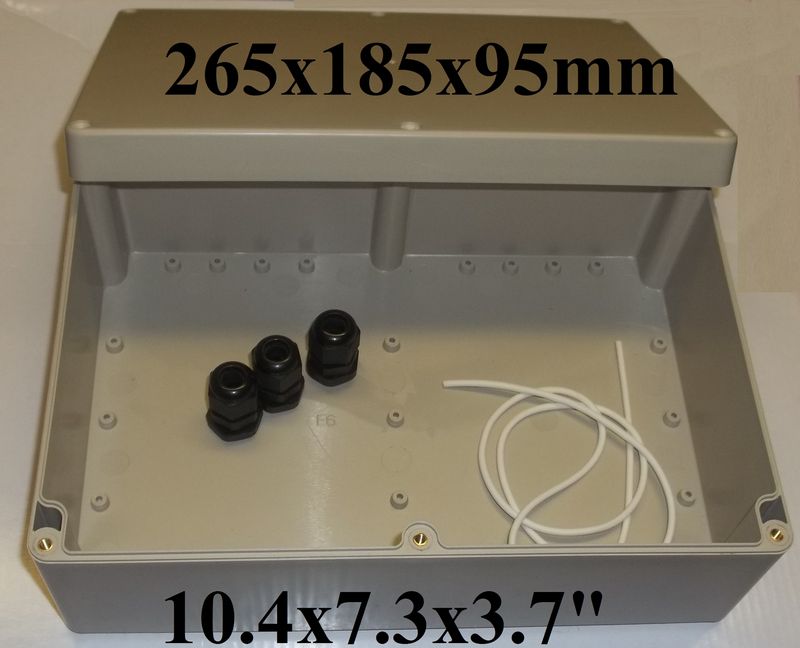

Plastic ABS IP65 Enclosure Waterproof Dustproof Sealed Housing Case Electronic Electrical Project Big Box with 3 Glands

Plastic ABS IP65 Enclosure Waterproof Dustproof Sealed Housing Case Electronic Electrical Project Big Box with 3 Glands
Click to enlarge
Price: $15.50
Availability: In Stock
Model: ABSbox1
Average Rating: Not Rated

Plastic ABS Enclosure Project Box & 3 Cable Glands  4-8mm

·         The ABS Watertight ET Enclosure is ideal for packaging high quality electronic and electrical instrumentation. These housings feature a stylish bevelled edge lid design, a smooth high-polish finish and moulded edges. The aesthetic design of our ABS Watertight ET enclosure will enhance the marketability of your finished product. Lid and Base are held together with 6 screws, supplied . Plus, these enclosures have been designed for mounting Printed Circuit board ( PCB ) or other needed electronic or electrical parts.

Technical Information



Material

ABS

Type

IP 65 Water proof

Captive lid screw

 with 6 screw

Surface Resistance

1014 Ohm to DIN 53482

Disruptive Strength

17 KV / mm to DIN 53481

Gasket Material

Silicone

Gasket Temperature Range

–40ºF to +212ºF

Dimention

265x185x95mm  or 10.4x7.3x3.7"

Color

Gray

Weight

680gr



 3 Black Nylon Cable Glands

Specification:





Product Name

Cable Gland 4-8



Model

PG-09



Degree of Protection

IP68 (Water Proof)



Cable Range

4-8 mm / 0.16”-0.31”



Thread O.D.

16 mm / 0.63”



Thread Length

9 mm / 0.35”



Total Size

34 x 18mm / 1.34" x 0.71" (H*D)



Material

Nylon



Color

Black



Weight

6 gr



Cable seal & holder

Rubber seal







Description:

  • Used for fixing cables, waterproof IP67.
  • Special design of the clamping die and rubber part, wide clamping range, strong stretching resistance, no damage to cables and devices.
  • Without disassembly, cable can be inserted through directly then tighten easily and save time.

 Package Include:

  • 1 Enclosure box with lid and screws and Gasket
  •  3 Cable Glands
