Mini Temperature Controller and Economical Temperature Controller with Washer Type Probe and maximum load of 30 Amp for Espresso Machines

Controlling the brew temperature is a key to espresso quality. This package helps you to control the brew temperature accurately.



By Simple wiring and running this ECONOMICAL Controller to your Espresso machine (like Rancilio Silvia, Gaggia, Starbucks Barista & etc) improve its brewing quality and enjoy the better taste of your coffee/espresso.

Following you will find some of this controller advantages compare to the PID controllers,



1-it is accurate controller with 0.1C resolution
2-It is compact size and easily can install
3-It has builtin relay 30 Amp , so it doesn't need additional relay or SSR and also because of 30 Amp power relay, life of relay is more than usual 10 or 15 amp relays
4-it can be easily programmed and wired



Most machines can't accurately control the brew temperature and the taste of each shot would be different from the other one, but with this controller you can do it with 0.1 degree accuracy.



This temperature controller is a top of the line unit that can be used for almost anything even with high Amp (30 Amp output relay). Use it to heat or cool. .

  • It displays and control your true temperature and alarms with a BUZZER (AUDIBLE) in an over heating or lower heating emergency. It has a set point and also alarm set point  from -22 to 230 F (0 to 110 degrees C)

    The sensor detects changes so quickly, you can see the temperature rise and fall degree by degree (with 0.1 degree resolution).

    The Controller has  relay output, so you can control your heater or cooler by your controller too .

    Controlling the temperature and time is a key to make high quality foods. By simple wiring ,this Temperature Controller helps you to control the temperature (accurately with 0.1 degree) and time (minute) on your cocking machine.

    Following you will find some of this controller advantages,

    1-it is accurate controller with 0.1 C or 0.1 F resolution controlling

    2-It is compact size and easily can install

    3-It has built in relay , so it doesn't need additional relay or SSR.

    4-it can be easily programmed and wired

    5-it equipped with timer too (with 2 type action).

    6-Configurable between Fahrenheit or Celsius

    7-Equipped with buzzer alarm for high or low temperature alarm setting


    This temperature controller is a top of the line unit that can be used for heating or cooling projects.

    We will ship the temperature controller with 110 V or 220 V versions based on the voltage of your countries. For example, if you are customers from United StatesCanadaMexicoJapan, Venezuela and Taiwan, we will ship 110 V versions. For customers from EuropeAustraliaNew Zealandmost Asian CountriesSouth America and Africa, we will ship 220 V versions.

    Features

    • Mini and light design
    • Large and clear LCD display
    • Temperature Range -30 ~ 110 °C (-22 ~ 230 °F )
    • Dual heating and cooling function
    • Control temperature by setting the temperature set value and the different value
    • Temperature Calibration
    • Wiring diagram for installation included

    Temperature Controller Specifications

    • Temperature Measuring Range: -30 ~ 110 °C (-22 ~ 230 °F )
    • Control temperature range: -30 ~ 110 degree (adjustable)
    • Control temperature difference: 0.1 - 25 degree (adjustable)
    • controlling Resolution: 0.1 degree
    • Timer : 0-999 minute
    • Sensor error delay: 1 minute
    • Relay contact capacity (Heating or cooling): 30 Amp
    • Compressor delay protection time: 0 ~ 10 minutes (adjustable)
    • Storage Temperature: -30 ~ 75 °C
    • Operating Relative Humidity: 20 ~ 85 % (No condensation)
    • Power Supply: 100-120 V AC/DC (depends on your country)
    • Power consumption: < 2 W
    • Cable length: 3 m (near to 10 feet)
    • Equipped with AH or AL buzzer alarm (Higher or Lower temperature alarm setting)
    • Item dimensions: approx. 75 (W) x 86 (H) x 35 (D) mm (2.95’ x 3.39’ x 1.38’ inch)
    • Item weight: 180 g

     Temperature Sensor Specification

    • Measurement range: -30 ~ 110°C (-22 ~ 230 °F )
    • Cable length (L): 10 ft (3m)
    • Sensor type: NTC sensor (10K)

    Wiring work

    The unit is of a panel mount design . This unit is supplied with wiring diagram of how to fix the main unit to your application systems.



    One Set Included

    • 1 x Mini-Temperature Controller

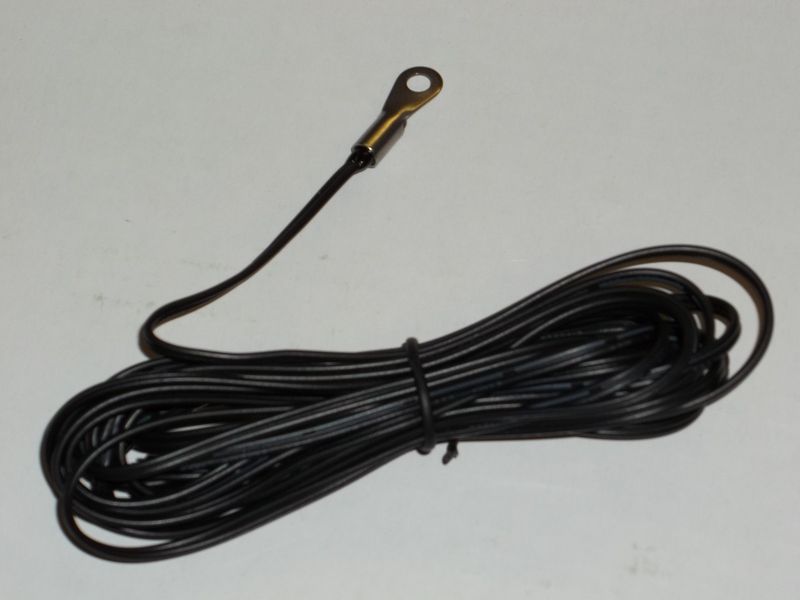

    • 1 x Washer type Temperature sensor probe 10K (-50 to 110C)
    • 1 x Instruction Manual

Manual & wiring diagram
