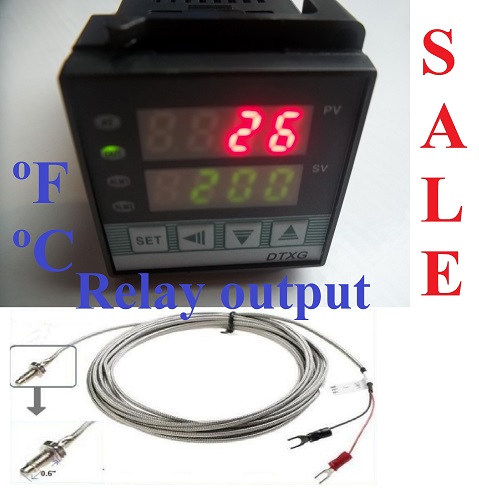

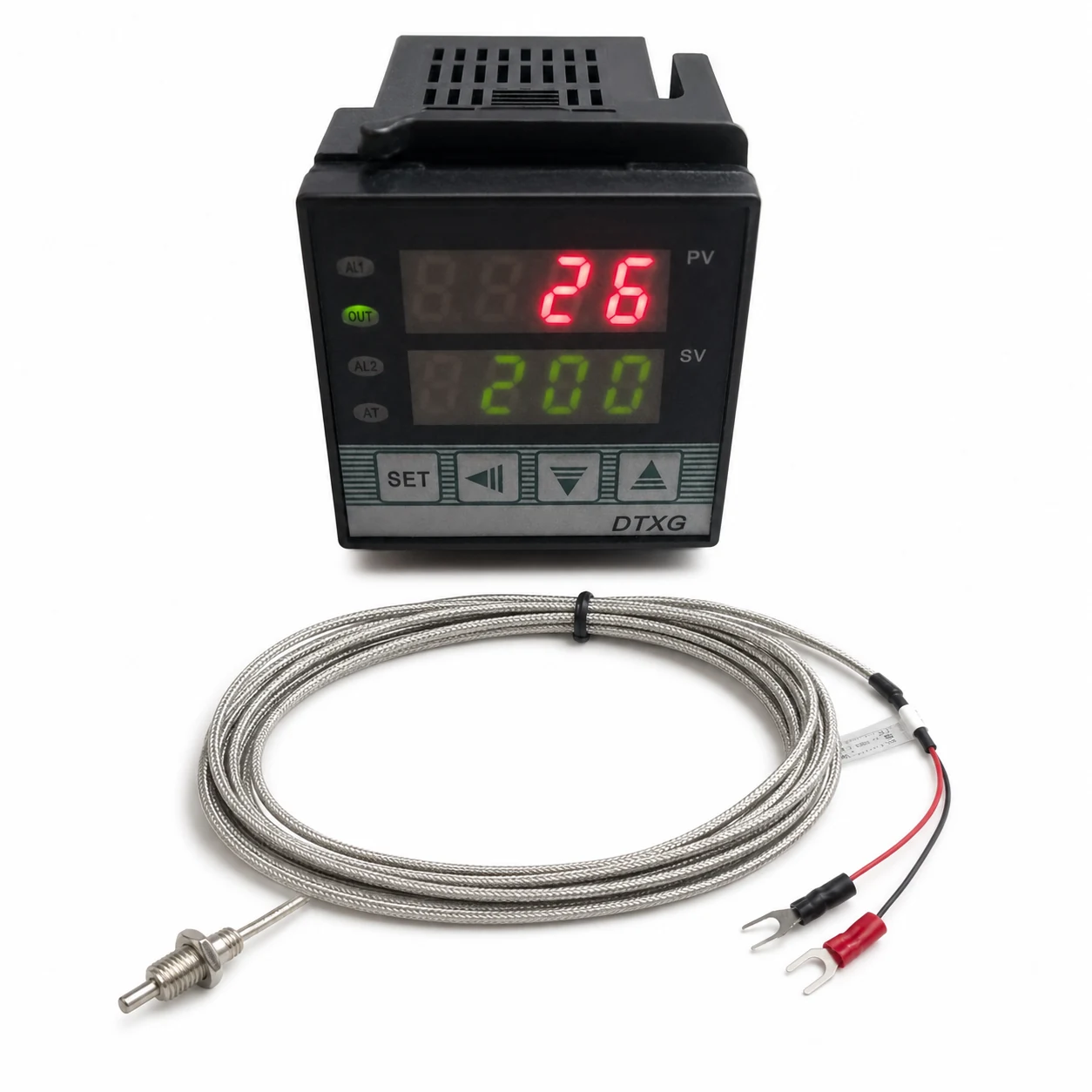

• Fahrenheit  Celsius Dual Digital PID Temperature Controller Kiln Oven Relay Output + Thermocouple Screw type




Mini Size Dual Digital PID Temperature Controller



This Dual Digital Temperature Controller can display both Fahrenheit or Celsius temperature and it has a universal input choice RTD (Pt100, Cu50) or thermocouple (K, J, E, T types)


This High performance - Low price - Intelligent Temperature Controller has a universal type input, which accepts various kinds of inputs, including thermocouples K, J, E and T types.

It is an ideal solution for a wide range of professional applications to automatically control temperatures of up to 2912 F (1600 °C).



Applicable industries:

- Machinery

- Chemicals

- Ceramics

- Light manufacture

- Metallurgy

- Petrochemicals

- Kiln, Oven, Furnace and etc.



Features & Specifications:

  • This Controller has a Relay output.
  • Equipped with a built-in relay (5A/220V/110v).
  • Out1 = Relay (heating side).
  • Alarm output built-in relay
  • It has a universal type input.

Control Method

PIN control (including ON/OFF, step-type PID and continuous PID)

Self-tuning control

Detective Temperature Range

32 to 2912 F (0 to 1600 °C) (depends on input type)

Display

Process value (PV), Setting value (SV)

Output, alarm and self-tuning can be indicated by: LED

Input Signal

Thermocouple: K, J, E, T

RTD: Cu50, PT100

Accuracy

±0.5%F.S

Control Way

Fuzzy PID control, state control manual

Control Output

- Relay output.

Equipped with a built-in relay (5A/110V or 3A/220V).

Alarm Type

High limit alarm, lower limit alarm,

below lower limit alarm.

Equipped with a built-in relay 5A

Alarm Output

Built in Relay 5Amp/110V , 3Amp/220V

Junction

None





Working Power

AC 90 - 260V, 50-60 Hz

Out Dimension

48 x 48 x 107mm

Install Dimension

45 x 45 mm



Thermocouple Specification:

  • Measurement range: 32 - 752 °F (0 - 400 °C)
  • Cable length (L): 3.3 ft (1m)
  • Sensing tip length: 1/2" (12.7mm)
  • Thread width (S): 1/4" (M6)
  • Internal Insulation: Fiber Glass
  • External shielding: Metal Shield (Stainless steel braided)

Manual

Write a review

Note: HTML is not translated!
   Bad           Good

Fahrenheit Celsius Dual Digital PID Temperature Controller Kiln Oven Relay Output + Thermocouple Screw type

  • Product Code:DTXG-R-TC
  • Availability:In Stock
  • USD27.50
