High-Temp WiFi Programmable Thermostat Controller – 120VAC, 15A/20A | K-Type Sensor | Multi-Stage Scheduling for Kilns, Furnaces, Ovens & Industrial Heating

Unlock smart, high-temperature control for industrial applications with this powerful WiFi-enabled programmable thermostat. Featuring a K-Type thermocouple sensor capable of measuring up to 1830°F (999.9°C) and support for multi-step time, temperature and scheduling with hysteresis, it’s perfect for staged heating processes like curing, hardening, and drying — all without the complexity of PID ramp and soak tuning.

You can select between 15A or 20A (120VAC) output, and choose an optional protective waterproof cover—ideal for outdoor use or shielding the controller from harsh environmental conditions.

Key Features:

• K-Type Thermocouple Sensor – Measures a wide temperature range from -40°F to 1830°F (-40°C to 999.9°C)
• Thermostat Logic (Not PID) – ON/OFF control with hysteresis, ideal for staged heating processes
• WiFi Control via Mobile App – Use the free Smart Life, Tuya, or Doodel app to monitor and control settings remotely from anywhere
• Multi-Setpoint Programming – Predefine multiple tasks with customizable temperature setpoints, hysteresis, and timers (once or repeatable) for complex scheduling
• Integrated Circuit Breaker – Built-in thermal protection with selectable 15A or 20A rating
• Manual/Auto Modes & Temperature Calibration – Easily switch modes and fine-tune readings with adjustable offset
• 120VAC Input & Output – Supports high-voltage AC devices up to 20A
• Optional Waterproof Protective Cover – Suitable for outdoor or harsh environments and prevents accidental contact with electrical components
• Advanced Timer Functions – Includes delayed start, cyclic scheduling, countdown timer, and 24/7 programmable clock with memory recall
• High/Low Temperature Alarms – Audible buzzer and mobile app notifications for critical temperature thresholds
• Emergency STOP Function – Instantly cuts power to ensure safety during abnormal conditions
• Large LCD Display – Clear, easy-to-read screen with °C/°F toggle
• Heating or Cooling Mode – Configurable based on your application needs
• Shared Control Access – Easily grant control to another user on a separate smartphone

Ideal Applications (High Temp / Industrial – Non-PID Required):

• Ceramic & Pottery Kilns (DIY & Semi-Professional) – Fire pieces using staged heating profiles
• Heat Treatment Ovens – Use multi-step scheduling for preheat, soak, and cool-down phases
• Industrial Furnaces – For general high-temp operations like mold drying, brazing, or component warming
• Powder Coating Ovens – Automate cycles with defined temp and time stages
• Material Curing (Resins, Adhesives, Composites) – Control curing with staged temperature steps
• Metal Forging Preheat – Automate temp increases for tools, dies, or workpieces
• Heat Presses & Lamination Equipment – Define work cycles with precise temperature windows
• Glass Bending or Slumping – Where ramp-soak timing is helpful but PID is not essential
• Burn-Off Chambers & Industrial Dryers – Program stepwise drying or burnout processes

Perfect for any industrial or workshop setting where precise PID control is not needed, but programmable, staged ON/OFF heating is essential.

What’s Included:

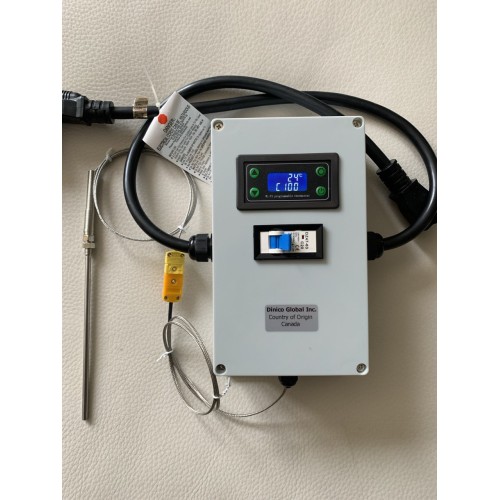

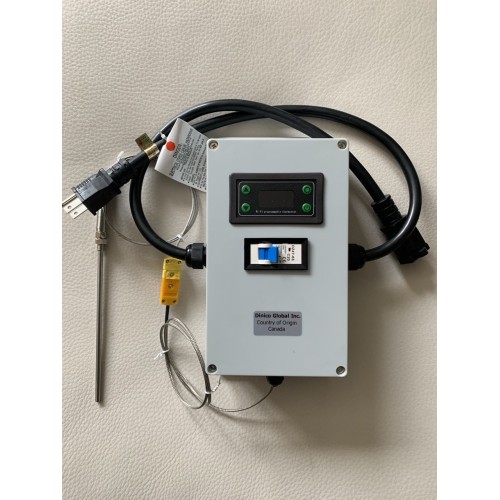

• Programmable Thermostat Controller (120VAC)
• K-Type Thermocouple Sensor 6"
• 15A or 20A Thermal Circuit Breaker (Pre-installed)
• Instruction Manual + App Setup Guide

Technical Specifications:

• Power Input/Output: 120VAC
• Max Output Current: 15A or 20A (selectable)
• Temperature Range: -40°F to 1830°F (-40°C to 999.9°C)
• Sensor Type: K-Type Thermocouple
• Control Type: Thermostat (ON/OFF with hysteresis)
• Programming: Multi-stage scheduling with setpoint, hysteresis, time
• Dimensions: 200 mm x 140 mm x 100 mm

DIN500-WP Manual
