Digital EGT Thermometer 24VDC, Pyrometer, Temperature controller with EGT Probe

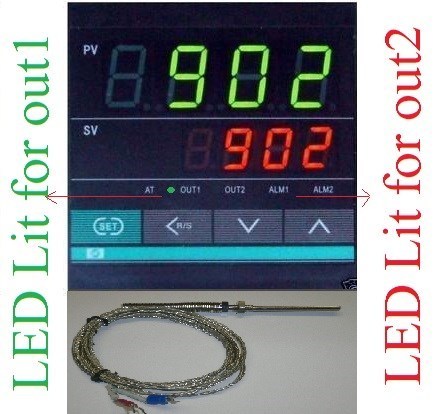

This Device use for monitoring or controlling Exhaust Gas Temperature (EGT). It can be powered directly by the car battery 24 VDC (For 12V you need to convertor 12V to 24VDC). It shows current temperature and also your set point (alarm temperature that you can set it on device). The device will turn on a green output LED in the front panel to get driver's attention if the temperature is above the setting point and also you can set another over alarm for alarm output . So, It has 2 relay switch, one relay output and also one over alarm relay output that each output switch separately can be used to turn on a buzzer, shut off the fuel, or turn on a cooling fan. The meter will accept all EGT K type sensors on the market and display the temperature on Celsius. The max temperature range for this device with K type EGT probe is 1300 C

This auction includes an EGT K type thermocouple probe. The probe has 2” long. Cable length(2 meters) with Maximum working temperature: 1000C .

If you need wire for 12VDC wiring please click Here

Control Method	PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control
Detective Temperature Range	0 to 1300 °C (with K type)
Display	Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED
Input Signal	Thermocouple: K,E,S,B,J,T,R,N
Accuracy	±0.5%F.S
Control Way	Fuzzy PID control, state control manual
Control Output	- Relay output. * Equipped with a built-in relay (5Amp). * Out1= Relay (heating side or cooling side selectable).
Alarm output	High limit alarm, lower limit alarm, below lower limit alarm. Equipped with a built-in relay 3Amp
Proportional Band	Selectable for control output
Integration time	1-3600 S
Derivative time	1-3600 S
Working Power	24VDC
Out Dimension	48 x 48 x 76 mm
Install Dimension	45 x 45 mm

EGT Probe Specifications:

Measurement range: 32 - 1800 °F (0 - 1000 °C)
Thermocouple Type: K Type
Cable length : 6 ft
Sensing tip length: 1.9" (48mm)
Sensing tip diameter: 0.19" (5mm)
Thread width : M8
Internal Insulation: Fiber Glass
External shielding: Metal Shield (Stainless steel braided)
