Independent Technical References

Explore independent publications documenting ThermoMart products in real-world applications.

NASA

Government engineering reference

Used in NASA-developed hardware

A ThermoMart temperature controller was used in NASA-developed high-temperature test hardware.

NASA Glenn’s Mark II oven was developed for prototype silicon-carbide device testing at temperatures up to 500 °C. The report shows a ThermoMart PID controller integrated into the completed hardware and identifies the model and manufacturer in the bill of materials.

Official publication

Mark II 500 °C Oven Build Instructions

NASA/TM-20250000442 · NASA Glenn Research Center ·

Siddh Jhaveri, Stephanie Booth, David Spry

View official NASA record Open official PDF

The NASA application

NASA Glenn engineers built a compact 500 °C oven for prototype silicon-carbide device testing. A ThermoMart controller runs the oven’s temperature-control system and is shown in the completed assembly.

Where ThermoMart appears in the report

  1. Figures 5, 7 and 8 · report pages 6 and 8 Installed in the completed hardware The controller is labeled inside the electronics enclosure and visible in both completed Mark II ovens. Open Figures 7 and 8 Also: Figure 5
  2. Step 4 and Table 1 · report pages 8–9 ThermoMart documentation cited The build instructions link to ThermoMart’s controller page and manual and publish the controller settings. Open Step 4 Also: Table 1
  3. Table B.2, item 3.10 · report page 17 Product and manufacturer named The bill of materials identifies PID-RS-USB and names ThermoMart as its manufacturer. Open Table B.2

Figures 7 and 8 show the completed ovens; Figures 5 and 4 provide supporting installation views.

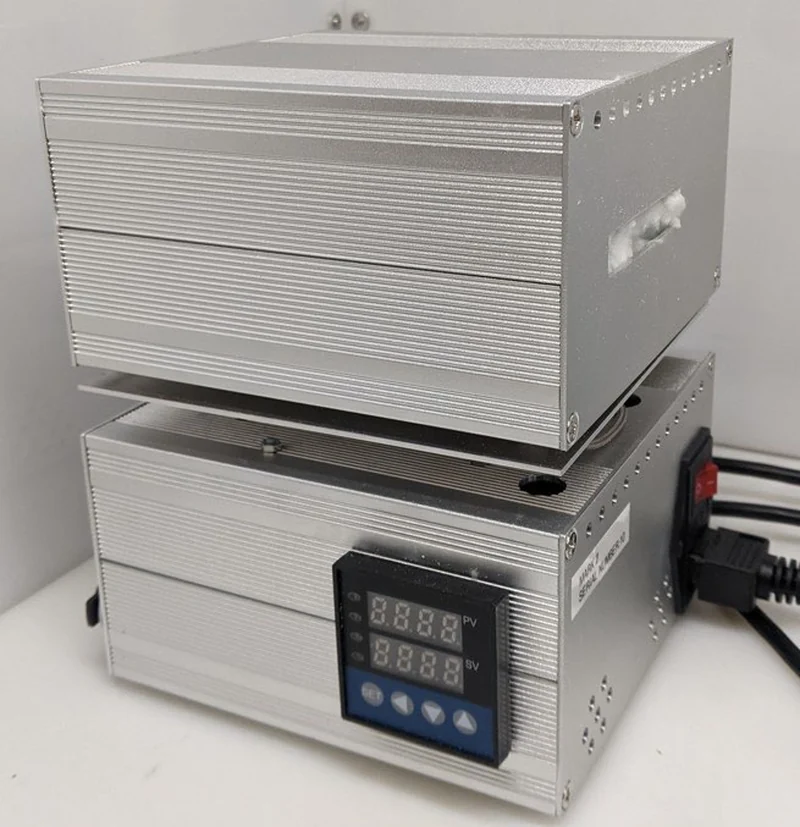

Completed NASA Mark II 500 degree Celsius oven with a PID temperature controller installed on its front panel
Figure 7. Completed Mark II oven with the ThermoMart controller visible on the front enclosure.

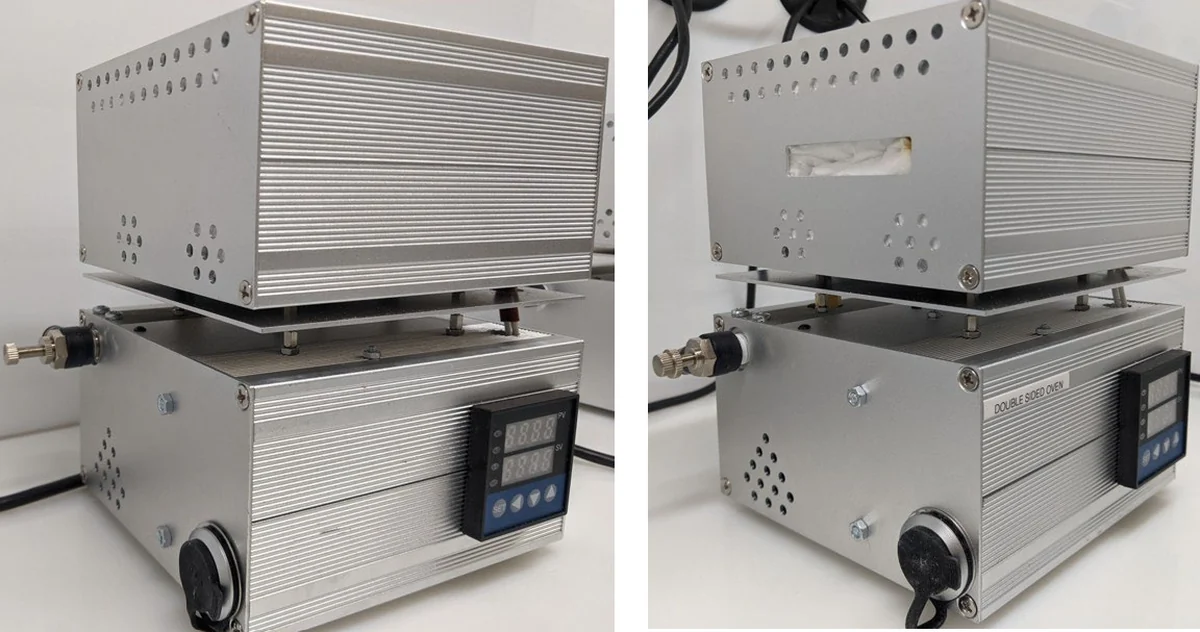

Single-sided and double-sided NASA Mark II oven configurations showing the installed front-panel PID controller
Figure 8. Single- and double-sided Mark II ovens with the installed controller visible.

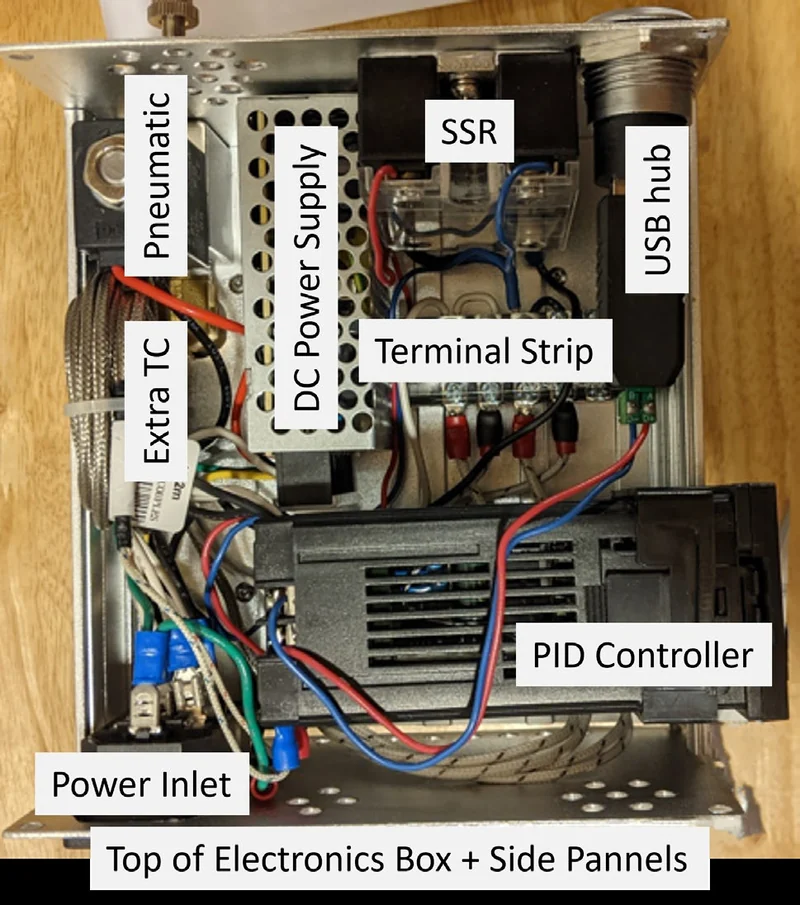

Annotated top view of the NASA oven electronics box with the PID controller, power supply, relay and wiring labeled
Figure 5. Electronics box with PID controller labeled.

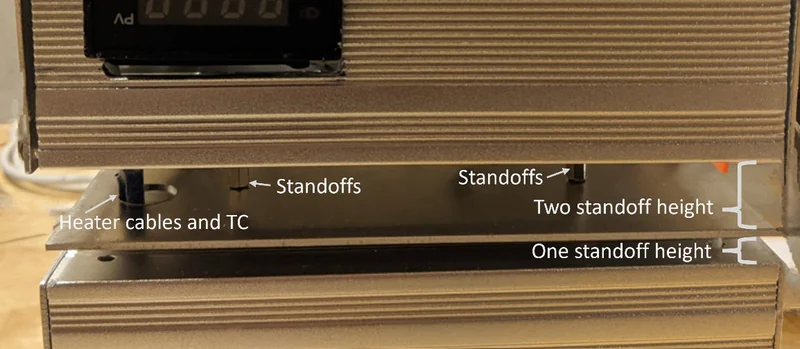

NASA Mark II oven standoff spacing and heater cable routing above the electronics enclosure
Figure 4. Oven standoff spacing and cable routing.

Source: NASA/TM-20250000442.

View supporting report excerpts See the ThermoMart product link, controller settings and bill-of-materials entry from the official report.

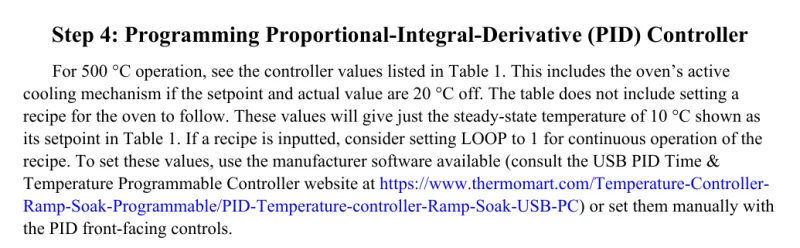

NASA report Step 4 programming instructions with a link to the ThermoMart programmable PID controller page
Step 4 excerpt. Step 4 links to the ThermoMart controller listing while documenting how the PID controller was programmed.

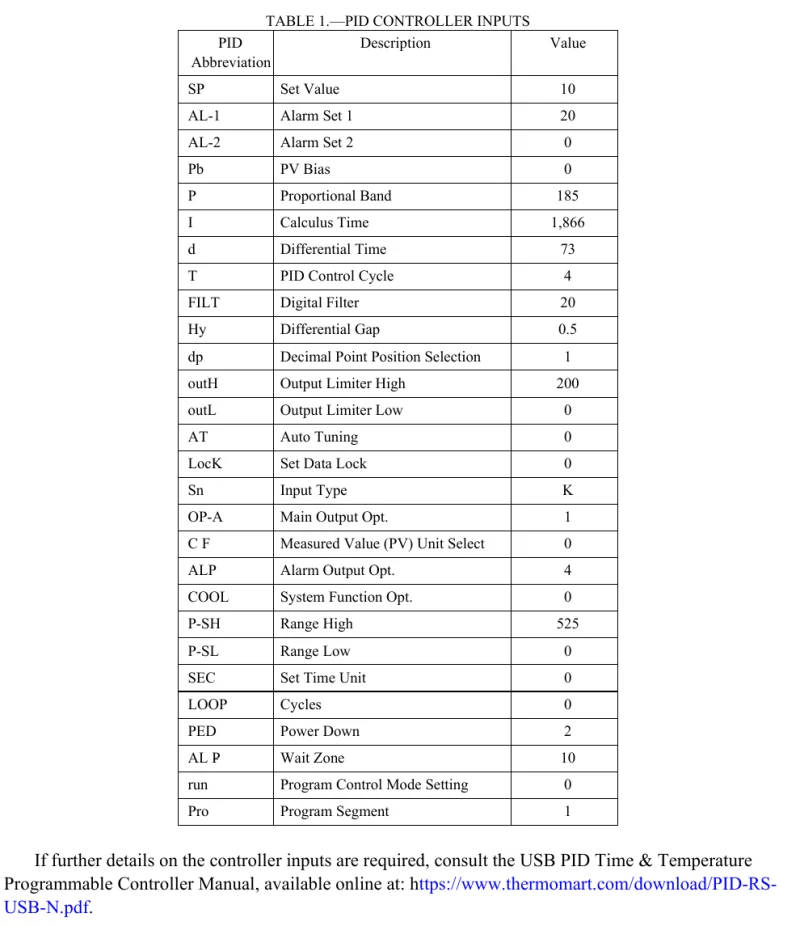

NASA Table 1 listing PID controller inputs and linking to the ThermoMart controller manual
Table 1 excerpt. Table 1 publishes the PID controller inputs and links to the ThermoMart manual.

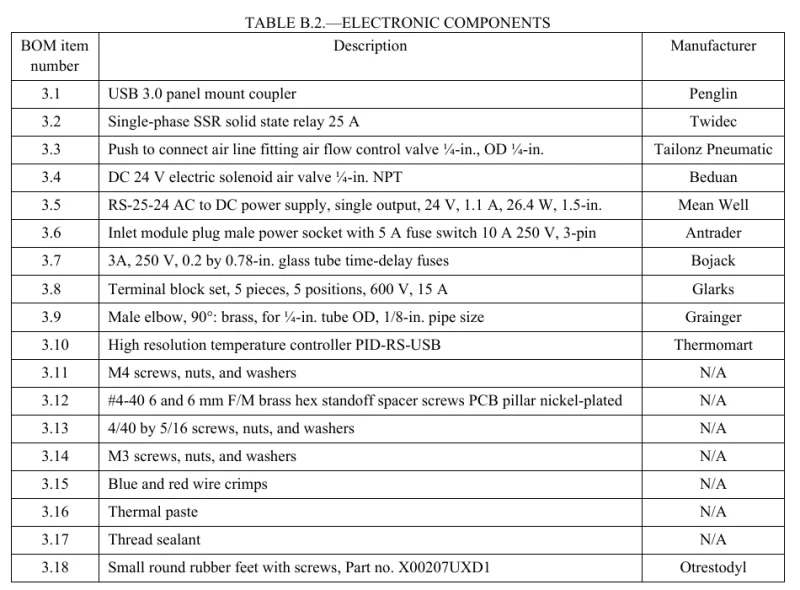

NASA electronic components table naming the ThermoMart PID-RS-USB temperature controller
Table B.2 excerpt. Table B.2, item 3.10 names the PID-RS-USB and identifies ThermoMart as manufacturer.

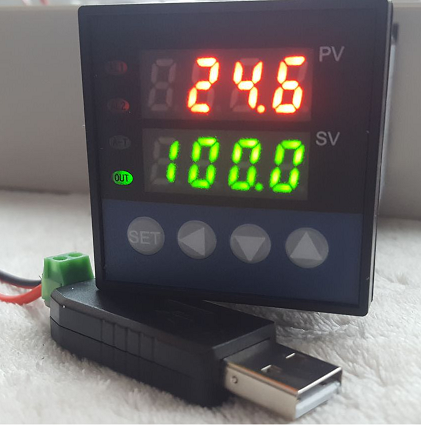

USB PID Time & Temperature Programmable Controller (Ramp & Soak) Recorder Data logger SSR output 60 Segments Referenced product family

USB PID Time & Temperature Programmable Controller (Ramp & Soak) Recorder Data logger SSR output 60 Segments

ModelPID-RS-USB-485 Price85.00 USD View product

Earlier Mark I oven development

Mark I established the compact high-temperature oven concept. It used a different controller and is shown only as design context.

ThermoMart-equipped Mark II build instructions

Mark II documents the ThermoMart controller in the assembled oven, programming instructions and bill of materials.

University of St Andrews

Published scientific research

Used in peer-reviewed explosives-detection research

A ThermoMart PID-SSR-USB was used to read and record temperature in peer-reviewed explosives-detection research.

University of St Andrews researchers used the controller in a custom sensor chamber studying the thermal control of fluorescent materials for trace explosive-vapour detection.

Official publication

Thermal control of organic semiconductors for trace detection of explosives

DOI: 10.1039/D3CP02868B · Royal Society of Chemistry ·

Edward B. Ogugu, Ross N. Gillanders, Salam Mohammed, Graham A. Turnbull

View official article Open official PDF

The research application

The research team built a stainless-steel, vacuum-tight chamber to study reusable fluorescent thin-film sensors for trace explosive vapours. A thermocouple connected to the PID-SSR-USB read and recorded the sensor temperature during the experiments.

Where ThermoMart appears in the paper

  1. Experimental methods · PDF page 2 Controller identified in the sensing setup The paper identifies the ThermoMart PID-SSR-USB recorder data logger used to read and record the sensor’s temperature. Open experimental methods

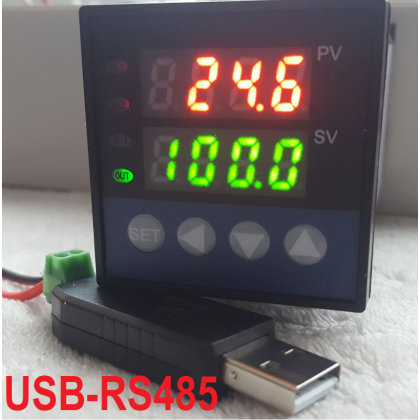

PID Temperature Controller Recorder Data Logger SSR Output °C °F + USB RS485 to PC Referenced product family

PID Temperature Controller Recorder Data Logger SSR Output °C °F + USB RS485 to PC

ModelPID-SSR-USB Price55.50 USD View product

Purdue University

Doctoral forensic chemistry research

Used in forensic thermolysis and mass spectrometry research

A ThermoMart four-channel PID controller and K-type thermocouples were documented in Purdue forensic chemistry research.

The doctoral work developed thermolysis instruments for forensic gas chromatography-mass spectrometry. Its materials list names ThermoMart equipment, and Figure 3.13 shows computer-controlled four-channel PID temperature control.

Official publication

Advances in Gas Chromatography, Thermolysis, Mass Spectrometry, and Vacuum Ultraviolet Spectrometry

DOI: 10.25394/PGS.14485308 · Purdue University ·

Ashur Scott Rael

View dissertation online Download official PDF

The research application

The research team fabricated thermolysis units for gas chromatography–mass spectrometry, including studies of thermally labile nitrate esters. The system used multi-zone PID temperature control across its furnace and instrument interfaces.

Where ThermoMart appears in the dissertation

  1. Materials · dissertation page 80 ThermoMart controller and thermocouples identified The dissertation names ThermoMart by Dinico Global as the source of a four-channel USB/RS485 PID controller and K-type metal-clad thermocouples. View dissertation online
  2. Figure 3.13 · dissertation page 95 Four-channel PID system diagrammed The fifth-generation instrument schematic shows the computer-controlled four-channel PID controller connected to its furnace, interfaces and thermocouples. View dissertation online
View the source page See the explicit ThermoMart references and the four-channel PID system diagram from the dissertation.

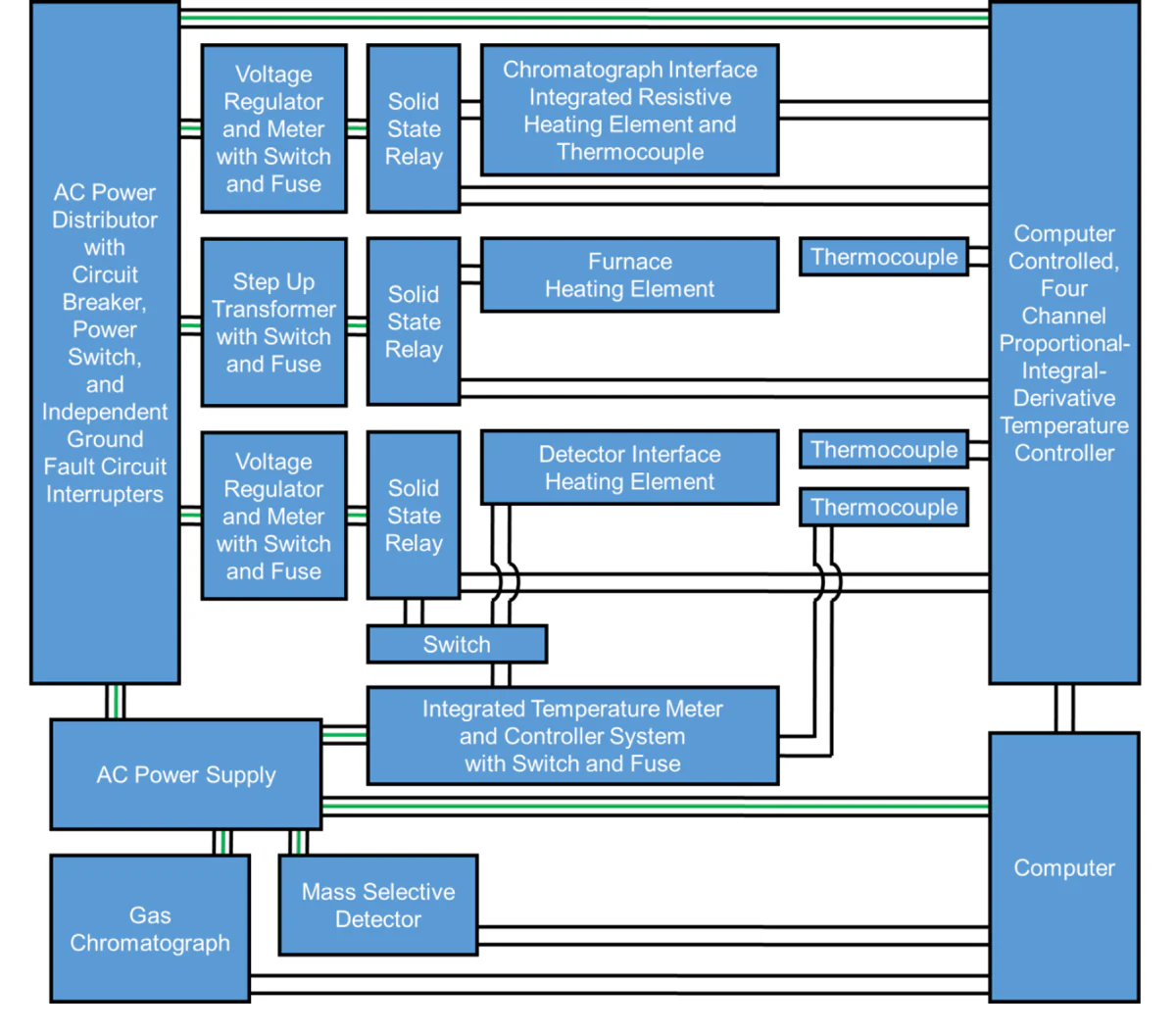

Purdue dissertation schematic showing a computer-controlled four-channel PID temperature controller connected to a furnace, thermocouples and gas chromatography mass spectrometry interfaces
Figure 3.13. Fifth-generation gas chromatography-thermolysis-mass spectrometry instrument with computer-controlled four-channel PID temperature control.

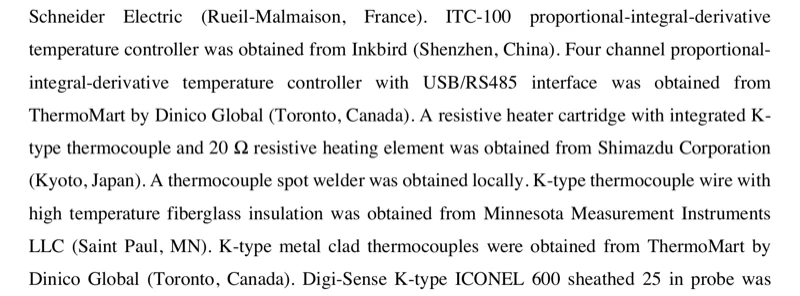

Purdue dissertation page 80 naming a ThermoMart four-channel USB RS485 PID controller and K-type metal-clad thermocouples
Materials excerpt · page 80. The materials section explicitly names ThermoMart as the source of the four-channel controller and K-type metal-clad thermocouples.
4 Zone Channel PID Temperature Controller SSR Output USB RS485 Data Logger Recorder with 4 thermocouple Referenced product family

4 Zone Channel PID Temperature Controller SSR Output USB RS485 Data Logger Recorder with 4 thermocouple

ModelPID-4CH-S Price135.00 USD View product

Built by customers and independent creators

Independent Customer Projects

Explore independently documented customer projects that put ThermoMart products to work in real-world applications.

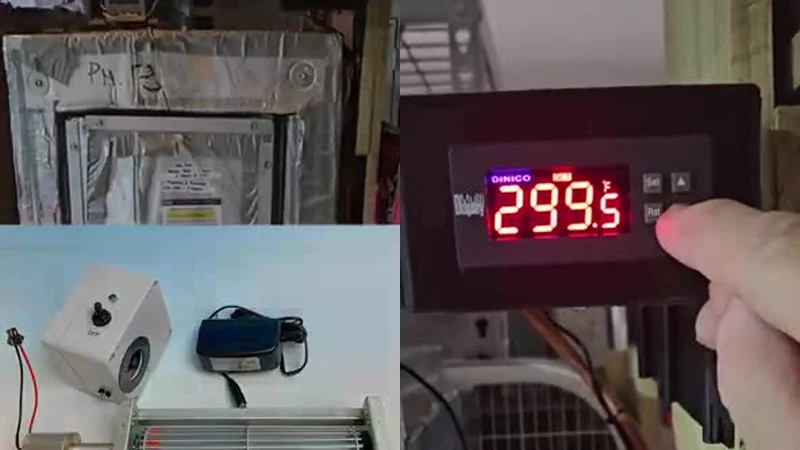

ThermoMart temperature controller operating a Cerakote curing oven in a professional shop walkthrough Featured project
Professional-shop video Professional shop walkthrough

Cerakote curing-oven control

Bentonville Certified Cerakote demonstrates ThermoMart temperature control in a converted shop curing oven.

The creator documents live oven operation, then updates the project with ThermoMart's 30 A model matched to the oven's electrical load.

Watch the oven walkthrough
ThermoMart productTemperature Controller Timer 572°F Buzzer Alarm 30Amp,Meat Sensor BBQ GRILL SMOKER OVEN STOVE BAKING CHARCOAL CAJUNModel DIN300A-30A
Residential pool and ThermoMart DTH101-series controller shown in a three-part phone-control installation series Three-part video series
time4akshun on YouTube Three-part installation walkthrough

Pool-heater phone control

A three-part installation series shows a ThermoMart DTH101-series controller adding smartphone control to a compatible residential pool-heating system.

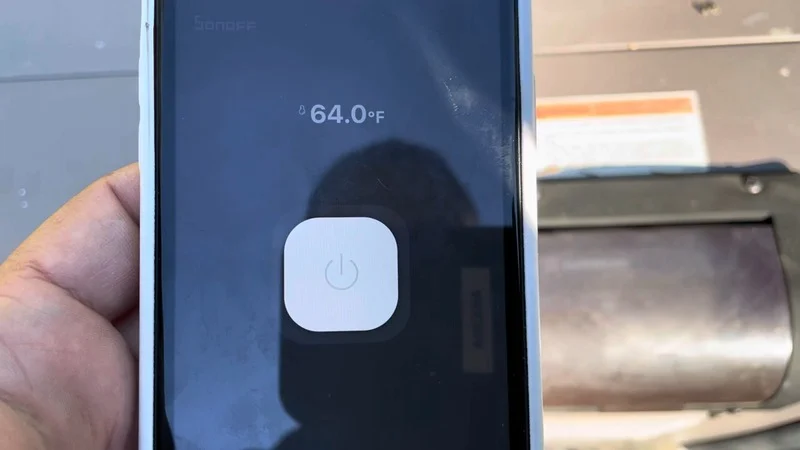

The creator documents the system overview, controller installation and working post-install operation.

ThermoMart productWiFi Gas Heater pool Heat Pump Spa Hot tub programmable Thermostat Timer Remote Receiver Control TemperatureModel DTH101-NP

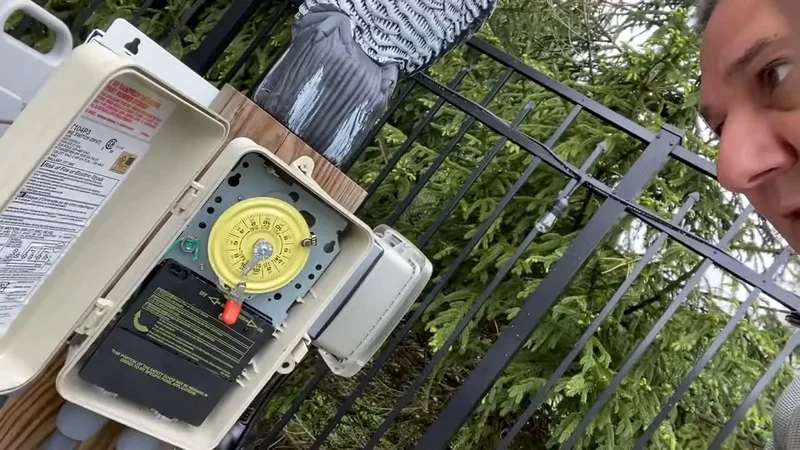

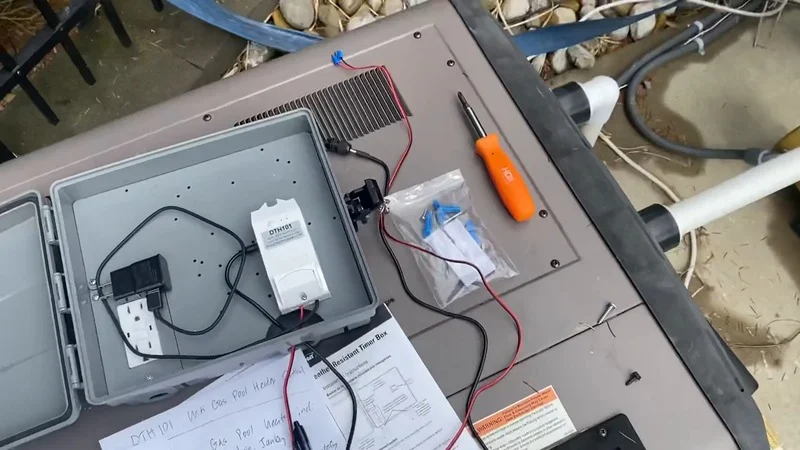

Original pool-heater timer and control-box overview before the ThermoMart phone-control installation Watch Part 1 · Overview ThermoMart DTH101 controller positioned inside a weatherproof enclosure during installation Watch Part 2 · Installation Phone app showing the pool temperature and remote power control after installation Watch Part 3 · Post-install

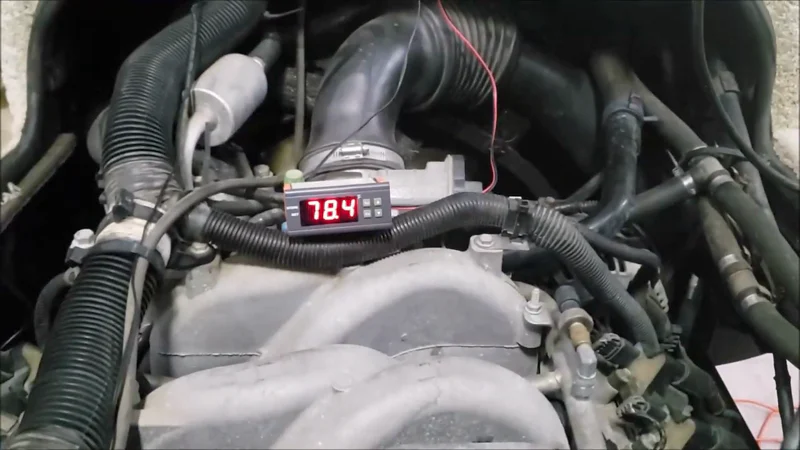

ThermoMart programmable temperature alarm operating beside a Workhorse 8.1 Vortec motorhome engine Automotive video installation
Kevin Caudill on YouTube Installed and alarm-tested

Workhorse Vortec engine-temperature alarm

A Workhorse motorhome owner installed a ThermoMart programmable alarm and M10 temperature sensor to monitor an 8.1 Vortec engine.

The video documents the sensor installation, controller setup and a working high-temperature alarm test.

Watch the engine-alarm installation
ThermoMart productDIGITAL TEMPERATURE CONTROLLER GAUGE ALARM ENGINE WATCHDOG CAR OVERHEATING WITH SENSORModel DIN300-12V ThermoMart productIntex Spa Hot Tub Jacuzzi Pool Water Temperature Screw type Sensor Probe M10Model NTC10K-S-M10
Porsche 911SC telemetry test using a ThermoMart 14 millimetre spark-plug thermocouple and a Haltech ECU Automotive forum build
Pelican Parts forum Successful signal test

Porsche 911SC engine telemetry

A Porsche 911SC builder wired a ThermoMart 14 mm spark-plug thermocouple into a Haltech R3 ECU for cylinder-head temperature data.

The initial wiring and signal test worked; the builder documented the sensor and interface with photographs.

View the documented build
ThermoMart productThermocouple CHT Washer Sensor Probe Cylinder Head Temperature 14mm All Mychrons 2 3 4 under Spark PlugModel CHT-14-752

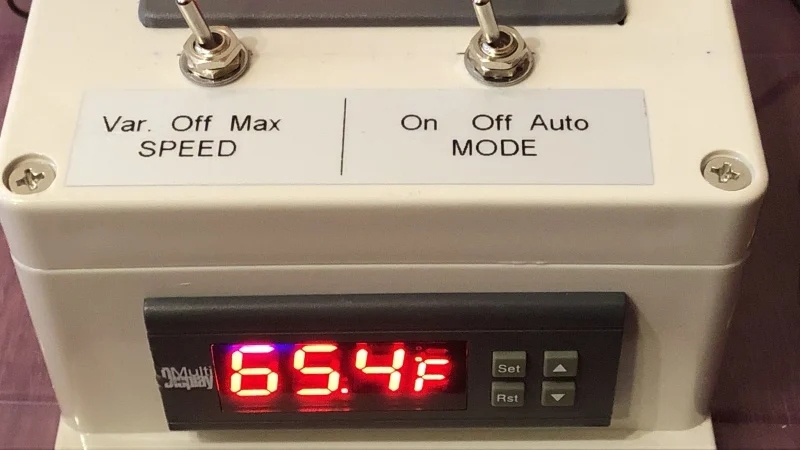

Modified pit-fan control enclosure from the forum build showing fan-speed and automatic-mode controls above the ThermoMart temperature display Barbecue forum build
AmazingRibs Pitmaster Club Detailed controller modification

Big Green Egg pit-fan controller

A Big Green Egg owner customized a ThermoMart plug-and-play fan controller for automated charcoal-smoker airflow.

The documented build adds PWM fan-speed control, a waterproof probe connector and a custom fan mount with damper.

View the pit-fan build
ThermoMart productCharcoal BBQ Grill Smoker Plug and Play Outlet 12VDC Temperature Controller+Fan 12VDC+Timer Model BBQ-DIN300

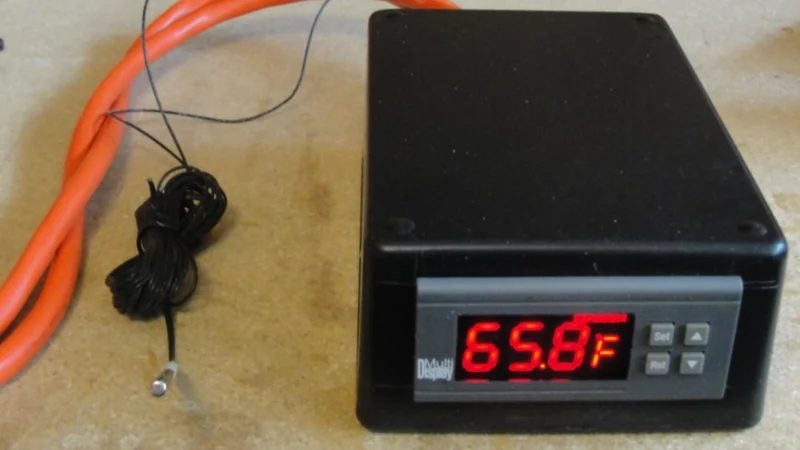

DIY electric-smoker controller enclosure built with a ThermoMart DN300A temperature controller Photo build guide
Cook Like A Man Long-running photo build guide

Electric-smoker temperature controller

A detailed project-box guide uses an earlier ThermoMart DN300A controller to automate a plug-in electric smoker.

The author reported successful temperature cycling, continued monthly use years later and several reader-built variations.

Read the build guide
ThermoMart productDigital Temperature Controller Thermostat BBQ Grill Smoker Oven Stove Baking Charcoal Burning Cajun DryingModel DIN300A-10A
