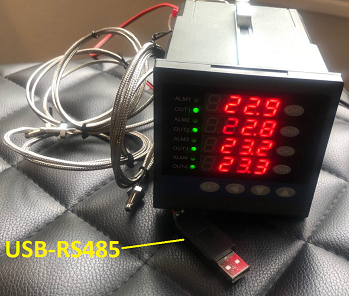

4 Zone Channel PID Temperature Controller SSR Output USB RS485 Data Logger Recorder with 4 thermocouple

Product Code: PID-4CH-S In Stock

USD135.00

Qty

Description

USB 4 Channel PID Temperature Controller Recorder Date Logger SSR output & universal type input + USB to RS485 + 4 Thermocouple 0-400C (32-752F). Please consider that you can change the thermocouples for higher temperatures. Display in either Fahrenheit or Celsius temperature unit and Decimal points.

This 4 channel temperature controller can connect with USB to your computer and you can set the parameters, monitor, record any 4 temperatures separately by your computer. All 4 channels are SSR output (the output can connect to buzzer alarm or fan or turn off the machine, or...) and comes with 4 Thermocouples. You can extend the USB wire as long as (150m) you want for connecting to your computer.

The software has a lot of functions like,

-Monitor and record temperature on Excel or graph by your needed interval time

-Easily Change or set the parameters on your computer and upload it on your temperature controller in second

-Change the software setting for your needed reports

-The software support windows and does not work with MAC

Use this PID Temperature Controller when you wish to precisely control, record, monitor the temperature of 4 objects at the same time with one set point .

This controller is one set point 4 separate channel PID temperature controller and it is easy to set and comes with a user friendly manual and USB/RS485 interface for connecting to computer.

If you need wire extension for USB adaptor for data transferring please click this 26/2 AWG low-voltage wire

The item includes: 4 Channel Temperature controller recorder+Free Software+ USB Converter (for connecting temperature controller to your PC)+ Manual+ 4 thermocouples K type 400C

Features & Specifications:

AUX output	USB RS485 for 4 channel
Detective Temperature Range	-200 to 1800 °C (depends on input type)

Input	Thermocouple: (K,E,J,T,S) RTD: (Cu50, PT100)
Output	SSR Output, can connect for any application like buzzer alarm, fan, turn off switch,...
Control action	Heating , Cooling
Response time	Less than 0.5S (configurable)
Accuracy	0.2%FS+- 0.1C(Cu50 cooper resistor compensation or ice point compensation) 0.2%FS+0.2C (TC input and internal compensation)
Temperature drift	Less than 0.01%FS ⁰C (Typical value is 50ppm/⁰C)
Resolution	1⁰C or 0.1⁰C(automatically change to 1⁰C when the temperature is higher than 999)
Display	Dual line - four digit - LED display
Decimal points	Configurable for all inputs
Control Method	ON/OFF AI MPT with auto tuning, adopting fuzzy logic PID algorithm
Auto/Manual Control	Auto/manual bump less transfer from front panel
Auto-tuning	Auto-tuning and manual tuning available
Software	Work with Windows
Software functions	Change parameter setting and save them, upload, record, export to Excel, make a graph and .... by your computer
Soft start function	In some particular application, 100% output ratio is not allowed when the power just turned on; soft start function is a great feature to solve this problem.
Decimal point	For all inputs
Power Supply	90~260VAC
Dimension (DIN 1/16)	96mm96mm90mm
Mounting	Panel Mount

Manual

If you cannot download the software please right click on the hyperlink to the software and select “open link in incognito window”. And then on the new incognito opened window select the URL address on the URL bar and click enter and it starts downloading the software.

PID-4CH Software
