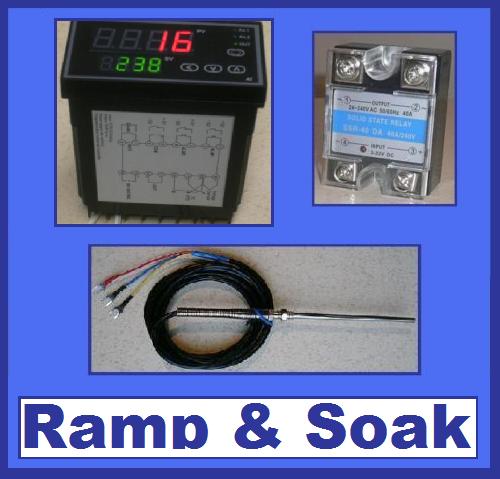

PID Kit for Beer Brewing with (Programmable Ramp & Soak controller, RTD sensor, SSR 40Amp)

Product Code: BBP-RS-SH In Stock

USD125.50

Qty

Contact Support Returns

Description

Make your own Beer Brewing system, by using this very economical & applicable kit.

Using this Programmable (Ramp & Soak) PID Controller with our offered PT100 (RTD) can precisely control the temperature of your system on different ramp and soak curves and on certain timely cycles.

This PID can be programmed for multiple profiles, up to 60 segments (30 Ramps and 30 Soaks).

This valuable kit includes:

Item	Quantity
Programmable Digital PID Temperature Controller, Ramp & Soak with 60 segments and SSR Output.	1
Solid State Relay (40A), 24-240V AC	1
PT100 (RTD) temperature sensor probe with a M8 Fixing Screw, Flexible Spring and an Armored Wire Cable.	1

Specifications:

Dual Digital PID Temperature Controller

Available Segments	Up to 60 segments available for a program
Detective Temperature Range	-200 to 1800 °C (depends on input type)
Patterns	Be able to program different patterns with different segments
Input	Thermocouple: (K,S,E,J,T,B,N) RTD: (Cu50, PT100) Linear Voltage and current:0-5V,1-5V,0-1V,0-100mV,0-20mV,0-60mV,0.2-1V(100-500mV),-20 -+20mV(0-10V) -5V- +5V(0-50V), -100 - +100mV(2-10V) Linear Resistor:0-80 Ohm, 0-400 Ohm
Output	SSR output
Control action	Heating , Cooling
Response time	Less than 0.5S (configurable)
Accuracy	0.2%FS+- 0.1C(Cu50 cooper resistor compensation or ice point compensation) 0.2%FS+0.2C (TC input and internal compensation)
Temperature drift	Less than 0.01%FS 0C (Typical value is 50ppm/0C)
Resolution	10C or 0.10C(automatically change to 10C when the temperature is higher than 999)
Display	Dual line - four digit - LED display
Decimal points	Configurable for all inputs
Control Method	ON/OFF AI MPT with auto tuning, adopting fuzzy logic PID algorithm
Auto/Manual Control	Auto/manual bump less transfer from front panel
Auto-tuning	Auto-tuning and manual tuning available
Alarm Mode	Absolute value high limit, Absolute value low limit, Deviation high limit alarm, Deviation low limit alarm.
Alarm stand by	In some occasions, for example, in the heating process, when the alarm is set to as low deviation alarm, right after the power is turned on, the alarm will be triggered but there is no problem in the system, the alarm block function can solve this problem.
Soft start function	In some particular application, 100% output ratio is not allowed when the power just turned on; soft start function is a great feature to solve this problem.
Temperature display unit	Configurable between Fahrenheit and Celsius
Power Supply	90~260VAC
Dimension (DIN 1/8)	L 96mm x W 48mm x D 108mm (Horizontal)
Mounting	Panel Mount
RTD (PT100)

This is a very practical and inexpensive PT100 with a M8 Fixing Screw, Flexible Spring and an Armored Wire Cable.
Its high quality probe is made of Stainless Steel and is 3.75 inch (95mm) long.
Its connector will work with Temperature Controllers.
It's easy to clean and easy to use.

RTD	PT100
Temperature range	-50 to 400 °C
Probe material	Stainless Steel
Probe length	95 mm (~3.75 inch)
Probe diameter (ɸ)	5 mm (~0.2”)
Cable length	1 m (~3.3’)
Fixing Screw	M8 x 16mm (~0.6”)
