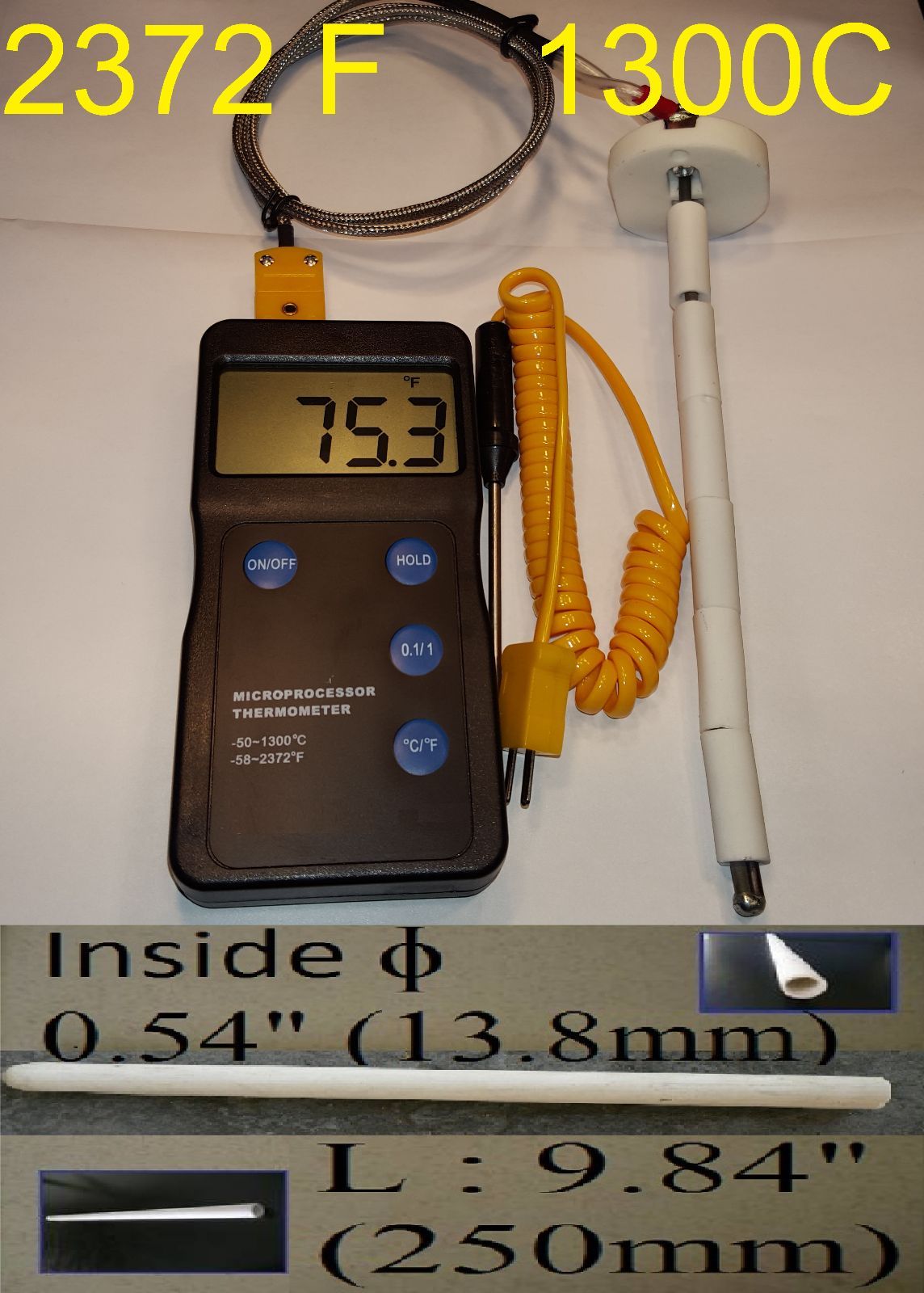

Kiln Pyrometer, Ceramic Thermocouple 1300°C, Ceramic Protection Tube for Kiln

This is a High performance and Top quality Digital Pyrometer with Ceramic Thermocouple and ceramic protection Tube. It has a big LCD (2.5” x 1.5”) digital display and is designed to use external K-type thermocouple as temperature sensor inside the protection tube.

Features:

• Temperature read-out in °F or °C
• Decimal display
• Overload display alert when input exceeds measurement range
• Designed for use with K-type thermocouples
• Data-hold function

Specifications:

·    Temperature range: -50°C to 1300°C ( -58°F to 2372°F)

• Resolution : 1°C or 1°F
• Protection Guard
• Dimensions: 130 x 95 x 28mm
• Weight: 220g
• Battery: Usual  9V battery

Thermocouple Specifications:

The Kiln Thermocouple includes:

1) A Ceramic Mounting Block.

2) 1m (3.3 ft) wire extension with a Flat Pin (Miniature) connector at the end.

• Its Flat Pin connector can be connected directly to a wide range of Digital Thermometers.
• By removing its Flat Pin, it can also be connected to Temperature Controllers.
• It can measure VERY HIGH temperatures up to 2372 °F.
• This heavy duty 8 gauge comes in 7.5 inch length.
• The length of this thermocouple is measured by the number of 1 inch long ceramics.
• Some extra length is added for connections.

Ceramic Protection tube specification:

• This ceramic sheath with 3.5mm heavy thickness is for protecting the high Temp Kiln Thermocouple to operate in the kiln.
• It prevents the thermocouple element from expose to the reducing gas and extends its life.
• It will also extend the thermocouple's life even for electric heated kiln.
• Another major advantage of these protection tubes is that you can replace your old thermocouples without changing the protection tube.
• The tube can be easily replaced independently from the thermocouples. They are not sealed or cemented together.

Package Includes:

• 1 x digital Pyrometer
• One K type thermocouple (-50 to 400°C) and one Kiln K type (-50 to 1300°C)
• Ceramic protection tube
• 1 x operating manual

Ceramic Thermocouple Assembling Tips
