Limit Temperature Flow Sensor Spa Hot Tub Water 1/4" Probe 2 Pin wires

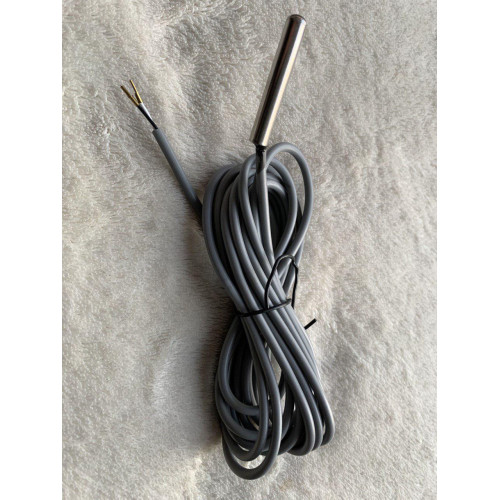

This is a Temperature Sensor (flow sensor) Probe 1/4" (6.4mm) diameter bulb with 3m (10ft) cable and temperature range of -58 to 230 °F (-50 to 110°C) that compatible for many Hot tub sensors like Caldera Gecko Jacuzzi Sundance Vita Balboa CAL ATS Assembly. (the bulb diameter size is 1/4", so please check the sensor size before buying)

This water proof sensor has a wide range of application but before buying, please check the dimensions and specifications on picture and following table that you select suitable sensor for your application.

Specifications:

• Measurement range: -58 to 230 °F (-50 to 110 °C)
• Cable length (L): 10 ft (3m)
• Sensing tip material : stainless steel water proof
• Sensing tip length size: 39mm (1.5")
• sensing tip bulb diameter: 1/4" (6.4mm)
• Check the picture for more information
• Sensor cable type: 2 wires with water proof gray PVC cover

If you need wire extension for sensor please click this 26/2 AWG low-voltage wire

You name your inquiry, we produce it for you. For more information or ordering larger volumes please contact us.

Temperature and Resistance Value table
