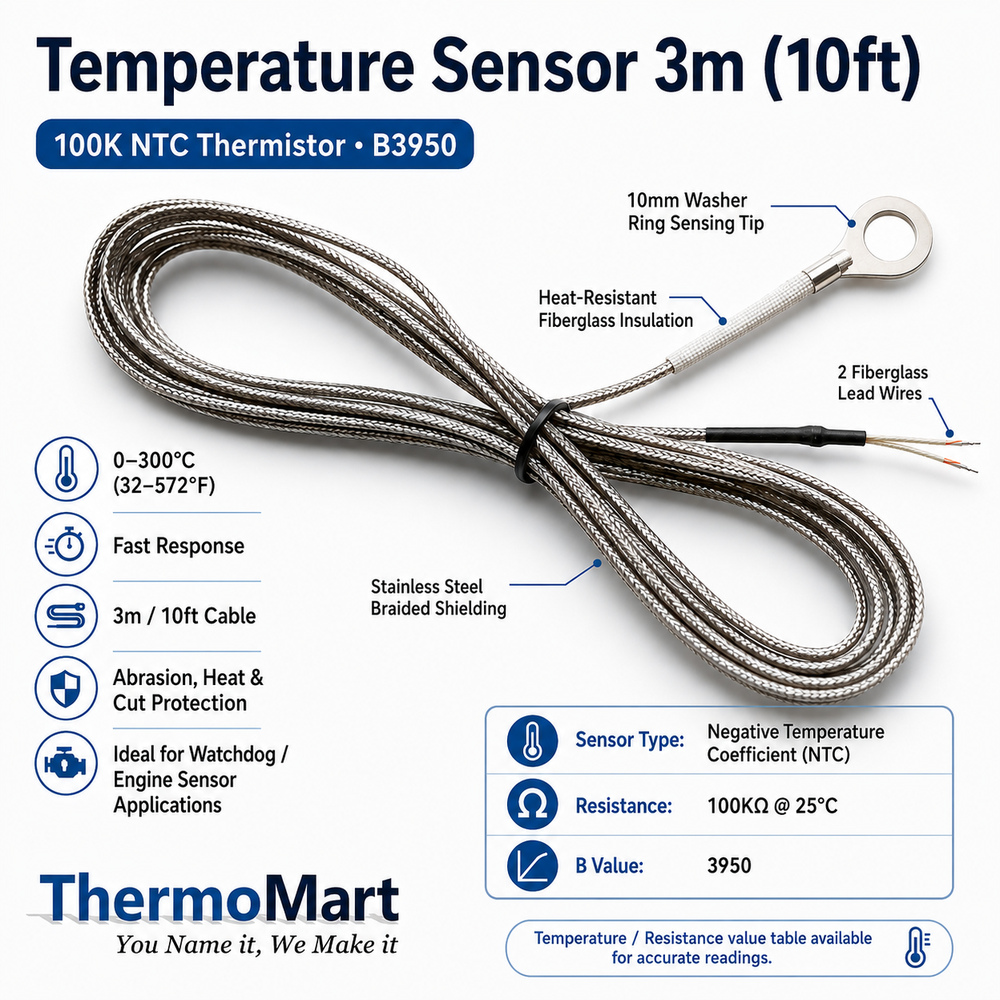

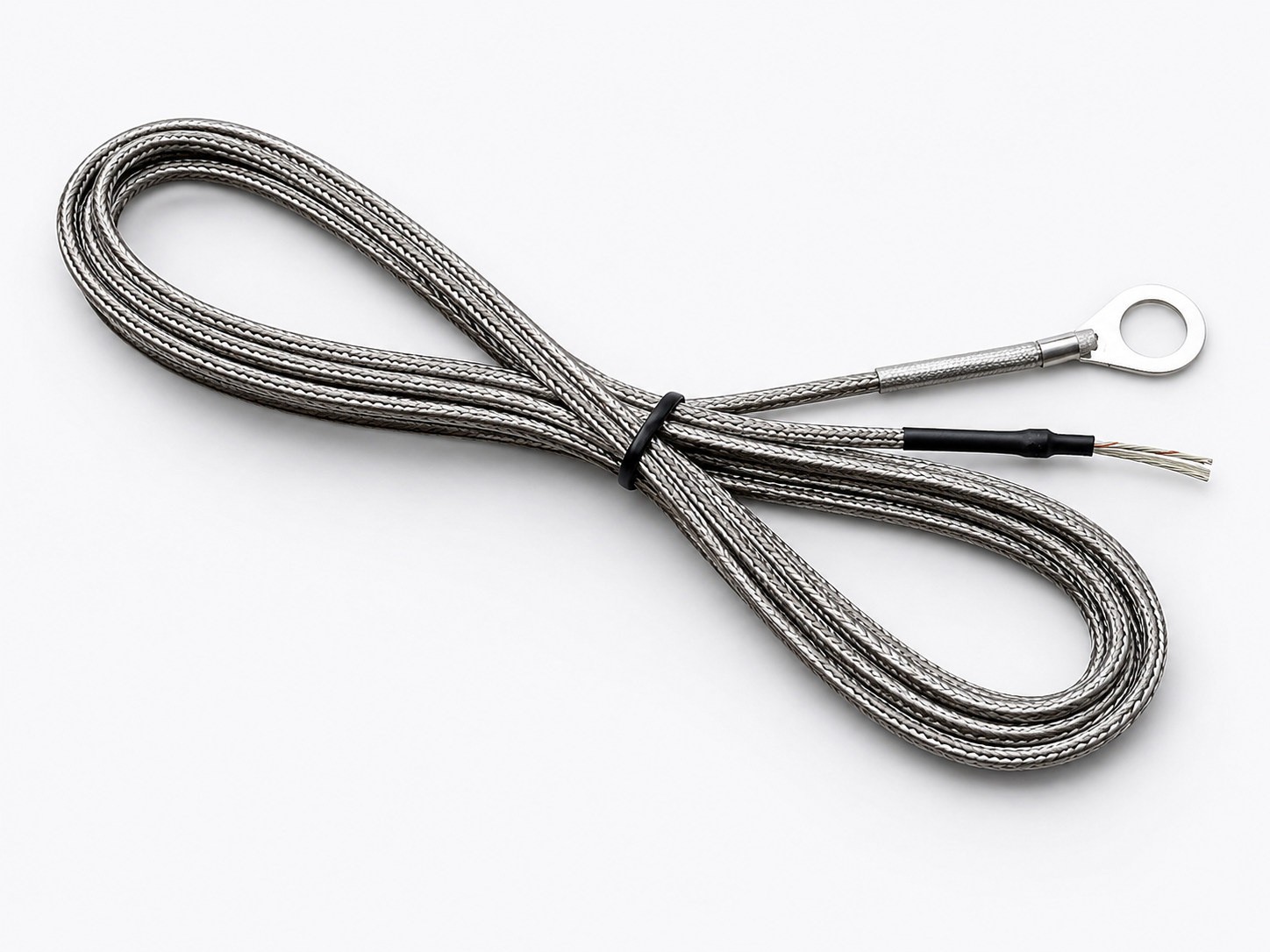

Watchdog Engine NTC Sensor 100K Stainless Steel Braided internal fiberglass Tinned Copper 10mm Washer

Introducing our Temperature Sensor 3m (10ft), which boasts a temperature range of 0 to 300°C and a fast response time. This versatile sensor is ideal for a wide range of applications, thanks to its external Metal Shielding of Stainless Steel braided and Internal Insulation made of heat-resistant fiberglass. The covers protect the wire from heating, cutting, and abrasion. The washer tip is made of Tinned Copper, which provides excellent protection against oxidation and corrosion.

Temperature Sensor Specifications:

• Measurement range: 0 to 300°C (32 to 572 °F)
• Cable material and length: 10 ft (3m) with 2 fiberglass lead wires and SS braided cover for lifetime use
• Sensing tip material: Tinned Copper (for protection against oxidation and corrosion)
• Washer tip hole: 10mm
• Sensor type: Negative Temperature Coefficient Sensor
• Type: 100K Ohm=25℃ B=3950

To make things easier, we've included a Temperature and Resistance Value table to help you get the most accurate readings from our Temperature Sensor.
