PID Kit for making Espresso Coffee Brewing Machine (Mini 1/32 Temperature controller, SSR, J thermocouple)

4.3/5 3 reviews / Write a review

Product Code: EBP-DTM-J In Stock

USD59.50

Qty

Contact Support Returns Reviews

Description

A Complete & Very Economical Package of compact Mini Digital PID Temperature Controller, Solid State Relay (SSR) & J Type Thermocouple (Washer Probe) For Espresso Machines

Controlling the brew temperature is a key to espresso quality. This package helps you to control the brew temperature accurately. The controller is compact size 1/32 DIN (24 x 48 x 75 mm =0.95'' x 1.89'' x 3''). It is suitable for building small control boxes or control panels where space is limited like small espresso machines.

By wiring and running this VERY ECONOMICAL package to your Espresso machine (like Rancilio Silvia, Gaggia, Starbucks Barista & etc) improve its brewing quality and enjoy the better taste of your coffee/espresso.

Most machines can't accurately control the brew temperature and the taste of each shot would be different from the other one.

Using this PID Controller with our offered J Type (Washer Probe) and SSR can precisely control the temperature of your system and gives you the required consistency of taste.

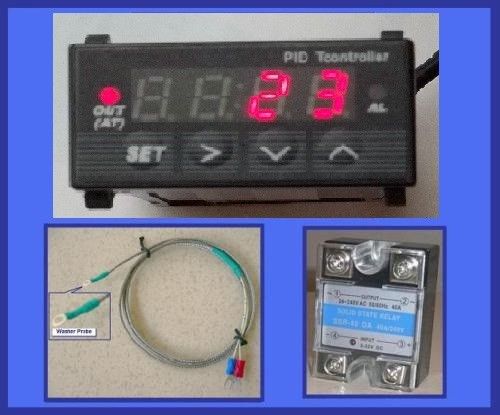

This Ad includes:

Item	Quantity
Mini Dual Digital PID Temperature Controller	1
Solid State Relay (40A), 24-240V AC	1
J Type Thermocouple with Washer Probe	1

Features:

Wide Range Selectable input , Thermocouple(K,E,J,N,S,T,R,B,) Pt100 ( Up to 649 C ) Voltage and Current (0-5VDC,0-20mA 1-5VDC,4-20mA)

High Measuring accuracy, ±0.2% or ±1 unit of full input range

Wide range of power supply 90~260VAC

Alarm standby function and Analog output buffer function

C or F display switchable. Calibration function for sensor temperature correction

Control Method	PIN control (including ON/OFF, step-type PID and continuous PID) , Self-tuning control
Temperature Range	32 to 2372 F or 0 to 1300 °C (with K type)

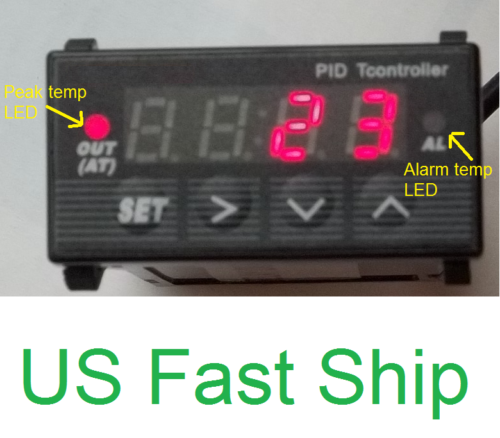

Display	Red, 4 Digit, C or F degree ,Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED
Input Signal	Thermocouple: K,E,S,B,J,T,R, RTD, Pt100, Cu50
Accuracy	±0.2%F.S and display resolution is 0.1 C or 0.1 F degree
Control Way	PID with over and under temperature alarm output
Output mode	Out1= switchable between built-in Relay (3Amp) or SSR with driving 8VDC, 30mA (short circuit)
Alarm output	High limit alarm, lower limit alarm,
Proportional Band	0.1-99.9%
Integration time	2-1999 S
Derivative time	1-399 S
Working Power	90-260 VAC
Out Dimension	1x2x3" or 24x48x75 mm compact size

J Type Thermocouple:

*Thermocouple type*	*J type* *Washer Probe with Inside diameter = 3mm*
*Measurement range*	*32 - 752 °F (0 - 400 °C)*
*Cable length*	*3.3 ft (1m)* *3.3 ft (1m) with internal fiberglass insulation and external metal shield (Stainless steel braided)*
