Plug & Play Waterproof Temperature and Humidity Controller Box

For Controlling Cooling, Heating, Humidity, and Dehumidification

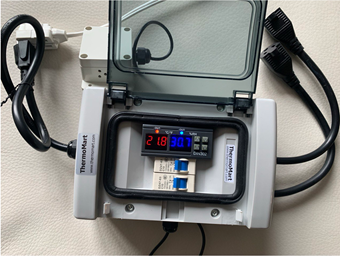

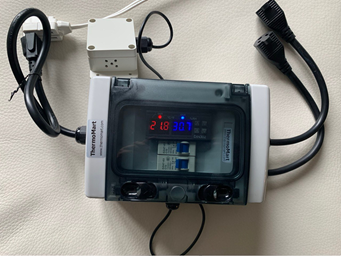

Take full control of your temperature and humidity with this heavy-duty, plug-and-play controller. Designed for indoor and outdoor use, it features a waterproof control box and a sensor housed in a protected enclosure with ventilation holes, allowing installation in humid or outdoor environments.

Simply plug in your devices (heater, cooler, humidifier, or dehumidifier), install the waterproof sensor, turn on the power, and set your desired temperature and humidity. The controller automatically manages the climate based on your settings.

Smart Dual-Output System with Safety Protection

• Two Independent Outputs – Control temperature and humidity separately or configure them together (parallel/series wiring) for a single device like a fan.
• Built-in Dual 10A Circuit Breakers – Ensures safety for both outputs, preventing electrical overloads.
• Configurable Heating or Cooling Mode – Supports both heating and cooling functions based on your needs.
• Humidifier & Dehumidifier Control – Switch between humidification and dehumidification modes effortlessly.
• Buzzer & Flashing Alarm – Alerts you when preset temperature or humidity limits are exceeded and automatically shuts off outputs to prevent damage.
• Memory Function – Records maximum and minimum temperature & humidity for seasonal adjustments and efficient performance.

Where Can You Use This Controller?

This versatile controller is perfect for a wide range of applications, ensuring optimal climate conditions in different environments:

• Home, Basement, or Attic Protection – Prevents mold growth and structural damage.
• Greenhouses & Gardening – Maintains ideal conditions for plants.
• Server Rooms & Data Centers – Prevents overheating and humidity damage.
• Refrigeration & Food Storage – Keeps perishable goods fresh and stable.
• Industrial & Warehouse Settings – Protects materials and equipment.
• Poultry Farms & Livestock Facilities – Maintains healthy climate conditions.
• Wine Cellars & Cigar Humidors – Preserves quality by controlling temperature & humidity.
• Laboratories & Medical Storage – Ensures precise environmental control for sensitive samples.

Technical Specifications

• Accuracy: ±1°C, 0.1%RH
• Power Consumption: <3W
• Temperature Range: -20°C to +80°C / -4°F to +176°F
• Humidity Range: 0%RH to 100%RH
• Sensor: Humidity and temperature sensor with 1m wire length
• Power Supply: AC 100-240V
• Output: 2 independent outputs, each supporting a 10A load
• Mounting Size: 71mm (L) x 29mm (W)

Key Features

• Plug & Play – Easy installation with no wiring required
• Dual relays for independent or combined control
• Waterproof control box & sensor for humid environments
• High/low alarm & automatic shutoff for safety
• Two-color digital display (Red = Temperature, Blue = Humidity)
• Adjustable start/stop values for precise climate control
• Temperature & humidity calibration
• Records max/min temperature and humidity levels
• Timer delay function to prevent frequent ON/OFF switching
• Switch between Fahrenheit & Celsius
• Factory reset option for restoring default settings

Package Includes:

• 1 x Humidity and Temperature Controller Box
• 1 x Waterproof Temperature & Humidity Sensor
• 1 x Instruction Manual

Why Choose This Controller?

Whether you need to protect your home, optimize plant growth, manage industrial environments, or store delicate items, this heavy-duty waterproof controller provides precise temperature and humidity control with built-in safety features.

Easy to install, reliable, and built for demanding environments!

DIN302 Manual
