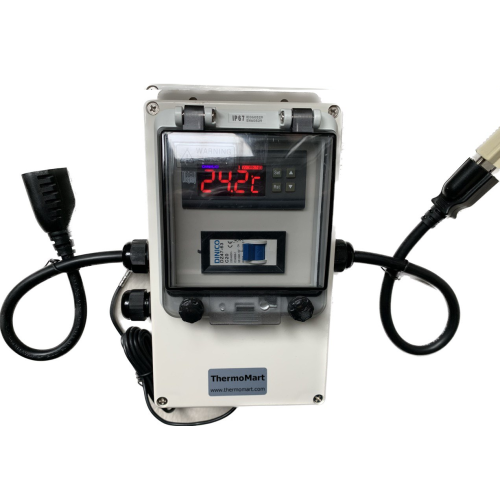

This heavy-duty plug-and-play temperature controller with a circuit breaker has a wide range of applications for controlling the temperature. It can work for any application of controlling heat and cold with a temperature range of -22 to 572 F ( 0 to 300 degrees C ).

You can select between 15 or 20Amp and also with or without a waterproof cover for outside use.

Main Features:

·          To operate, you only need to plug the heater or cooler into the socket wire of the controller at the back, drop the sensor into place, turn on the power of the controller Box, and set up the controller to your own requirements.

·          15 or 20 Amp Circuit Breaker switch for safety(please select)

·          Heavy duty input and output plug and socket wires

·          With or without a waterproof cover for outside use (Please select)

·          It equipped with 2 types of timer

·         Configurable between Fahrenheit or Celsius

·          Heating or cooling function (configurable)

·          It is the accurate controller with 0.1 C or 0.1 F resolution controlling

·          Temperature Calibration

.          Equipped with buzzer alarm for high or low-temperature alarm setting

This thermostat simply turns off the Heater or cooler when it reaches the specified temperature.

Temperature Controller Specifications

• Temperature Measuring Range:

  -22 to 572 F ( 0 to 300 degrees C )

• Control temperature range:

  -22 to 572 F ( 0 to 300 degrees C )

    (adjustable)
• Control temperature difference: 0.1 - 25 degrees (adjustable)
• controlling Resolution: 0.1 degree
• Timer : 0-999 minutes
• Sensor error delay: 1 minute
• Compressor delay protection time: 0 ~ 10 minutes (adjustable)
• Storage Temperature: -30 ~ 75 °C
• Operating Relative Humidity: 20 ~ 85 % (No condensation)
• Power Supply: 120VAC (North America) or 220–240VAC (Europe/Australia), depending on the country
• Power consumption: < 2 W
• Cable length: 3 m (near to 10 feet)
• Equipped with AH or AL buzzer alarm (Higher or Lower temperature alarm setting)

 Thermocouple Specification

• Measurement range:

  -22 to 572 F ( 0 to 300 degrees C )


• Cable length (L): 10 ft ( 3m )
• Sensor type: Negative Temperature Coefficient NTC sensor  100K
