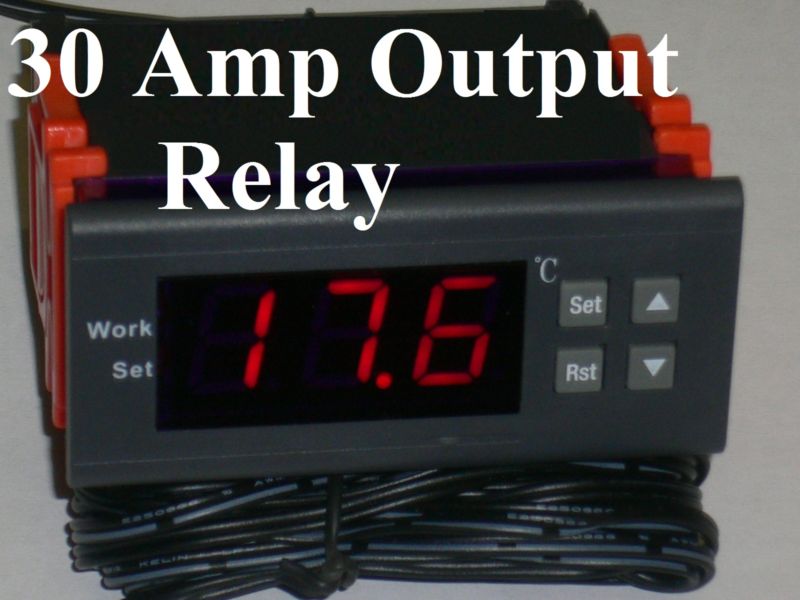

Power Thermostat Temperature Controller With Timer, Buzzer Alarm, 30 Amp Relay with 0.1 °F °C Accuracy

Dual Mini Temperature Controller Thermostat for Controlling temperature on any device with heat or cool function like electric BBQ, Grill, Smoker, Oven, Stove, Drying Oven,Thermal shrink Tunnel, Heat sealing machine, Strong Fans,....  in the temp range -22 to 572 F (-30  to 300 C) with High output 30 Amp

Controlling the temperature and time is a key to make high quality control. By simple wiring ,this Temperature Controller helps you to control the temperature (accurately with 0.1 degree) and time (minute) on your device.

Following you will find some of this controller advantages,

1-it is accurate controller with 0.1 C or 0.1 F resolution controlling

2-It is compact size and easily can install

3-It has built in relay , so it doesn't need additional relay or SSR.

4-it can be easily programmed and wired

5-it equipped with timer too (with 2 type action).

6-Configurable between Fahrenheit or Celsius

7-Equipped with buzzer alarm for high or low temperature alarm setting

 All products are 100% Brand new, High performance and Top quality.

 Controller comes in Box with MANUAL.

 Guarantee your Insured Undamaged shipping by purchasing from a Canada located seller.

This temperature controller is a top of the line unit that can be used for heating or cooling projects.

 Ready for Immediate Shipment.

We will ship the temperature controller with 110 V or 220 V versions based on the voltage of your countries. For example, if you are customers from United States, Canada, Mexico, Japan, Venezuela and Taiwan, we will ship 110 V versions. For customers from Europe, Australia, New Zealand, most Asian Countries, South America and Africa, we will ship 220 V versions.

Features

• Mini and light design
• Large and clear LCD display
• Temperature sensor Range for aquarium is -30 ~ 300 °C (-22 ~ 572 °F )
• Dual heating and cooling function
• Control temperature by setting the temperature set value and the different value
• Temperature Calibration
• Wiring diagram for installation included

Temperature Controller Specifications

• Temperature Measuring Range: -30 ~ 300 °C (-22 ~ 572 °F )
• Control temperature range: -30 ~ 300 degree (adjustable)
• Control temperature difference: 0.1 - 25 degree (adjustable)
• controlling Resolution: 0.1 degree
• Timer : 0-999 minute
• Sensor type: compatible with NTC 10K and NTC 100K
• Relay contact capacity (Heating or cooling): 30 Amp
• Compressor delay protection time: 0 ~ 10 minutes (adjustable)
• Storage Temperature: -30 ~ 75 °C
• Operating Relative Humidity: 20 ~ 85 % (No condensation)
• Power Supply: 100-120 V AC/DC (depends on your country)
• Power consumption: < 2 W
• Cable length: 3 m (near to 10 feet)
• Equipped with AH or AL buzzer alarm (Higher or Lower temperature alarm setting)
• Item dimensions: approx. 75 (W) x 86 (H) x 35 (D) mm (2.95’ x 3.39’ x 1.38’ inch)
• Item weight: 180 g

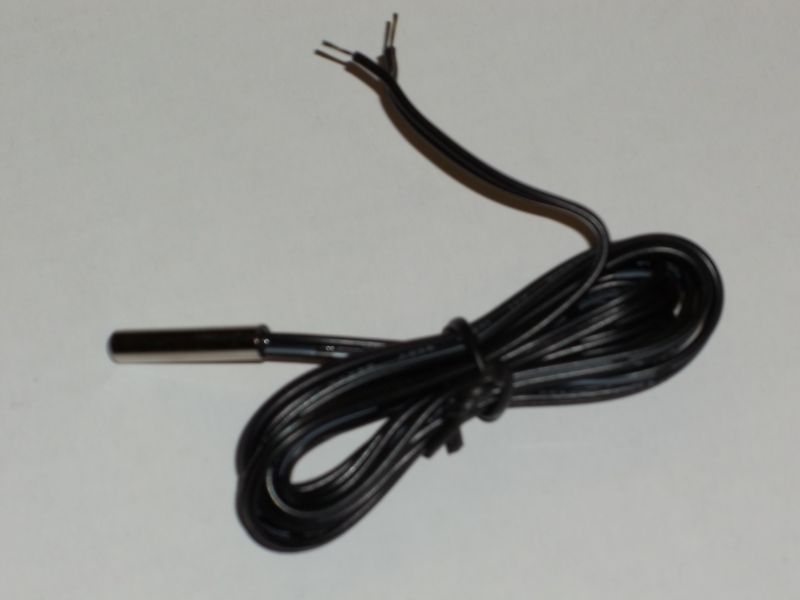

 Temperature Sensor Specification

• Measurement range: -30 ~ 300 °C (-22 ~ 572 °F )
• Cable length (L): 10 ft (3m)
• Sensor type: NTC sensor (100K)

Wiring work

The unit is of a panel mount design . This unit is supplied with easy wiring diagram of how to fix the main unit to your application systems.

One Set Included

• 1 x Mini-Temperature Controller
• 1 x Water Proof Temperature sensor probe with 3m cable
• 1 x Instruction Manual

Manual & wiring diagram
