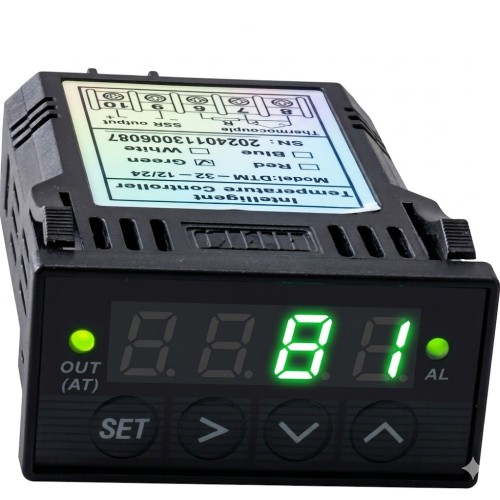

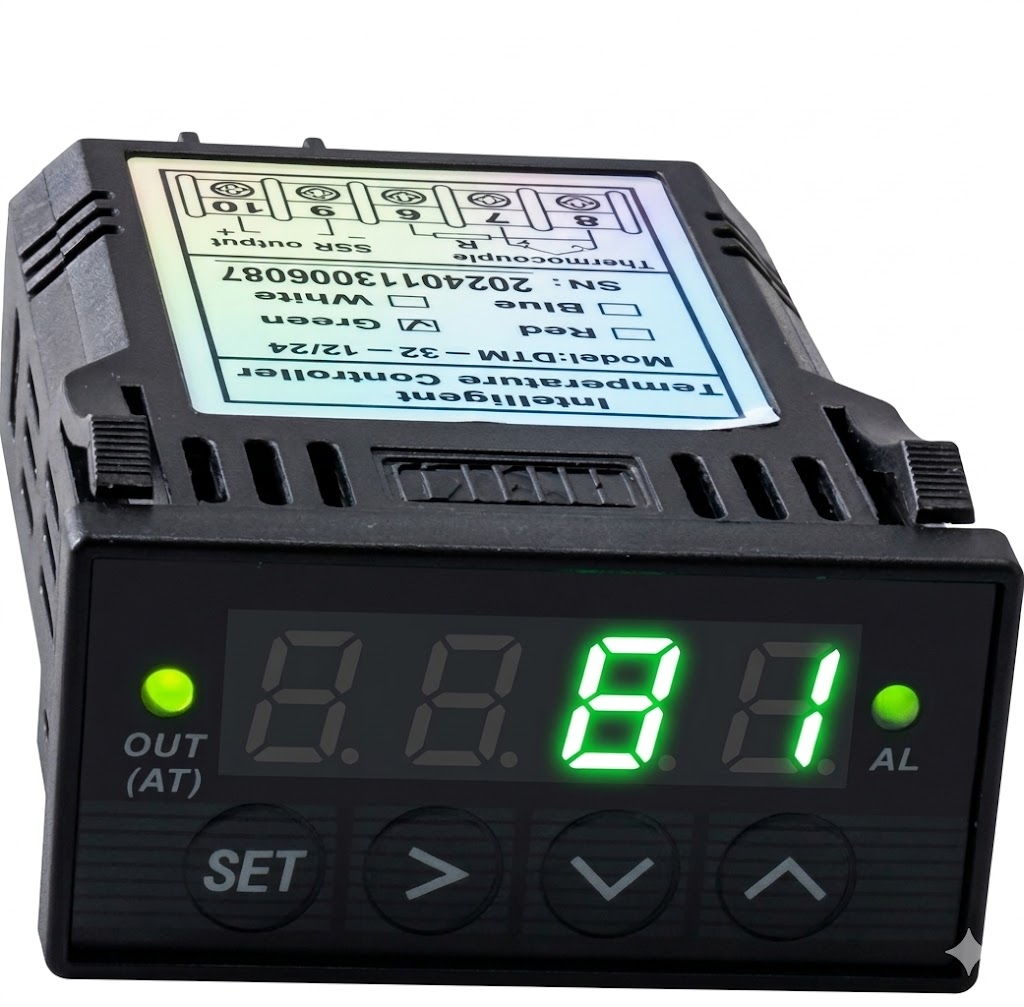

Digital EGT Temperature Controller

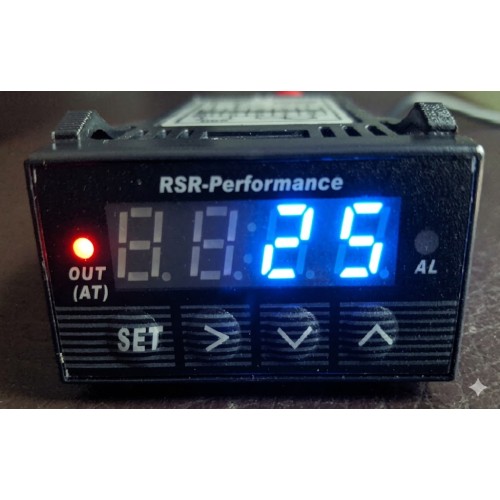

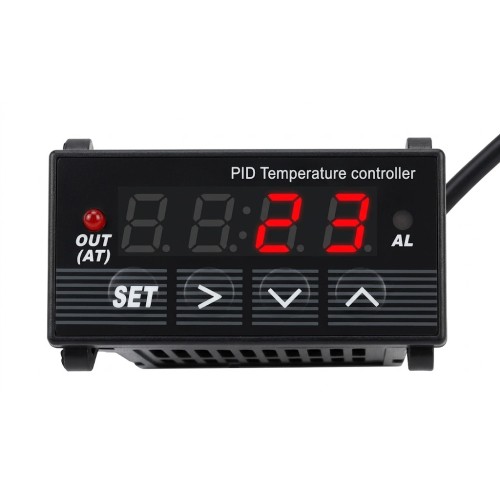

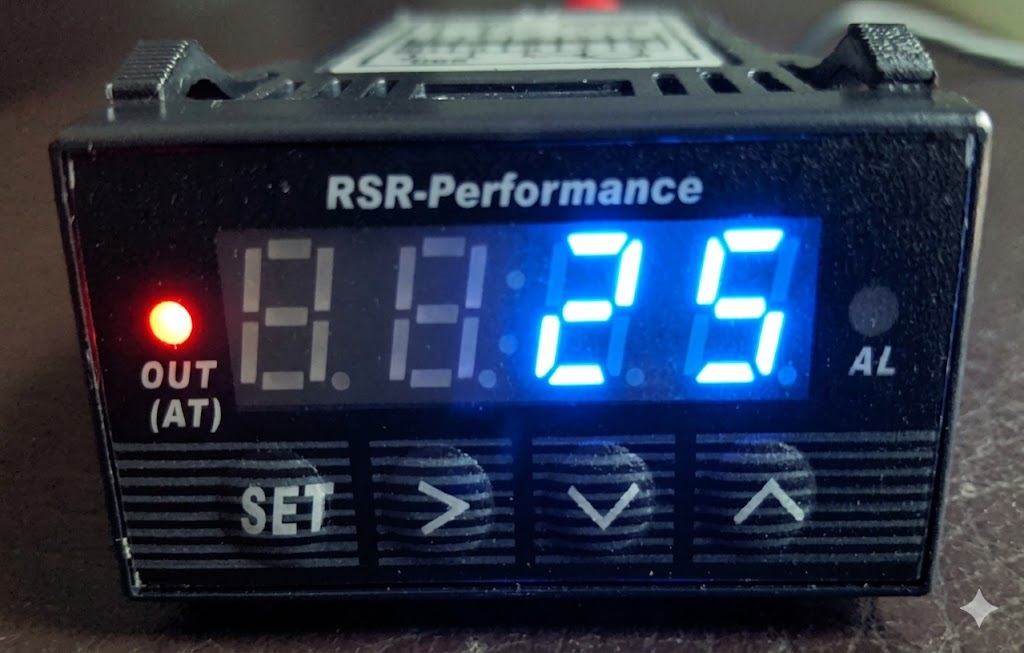

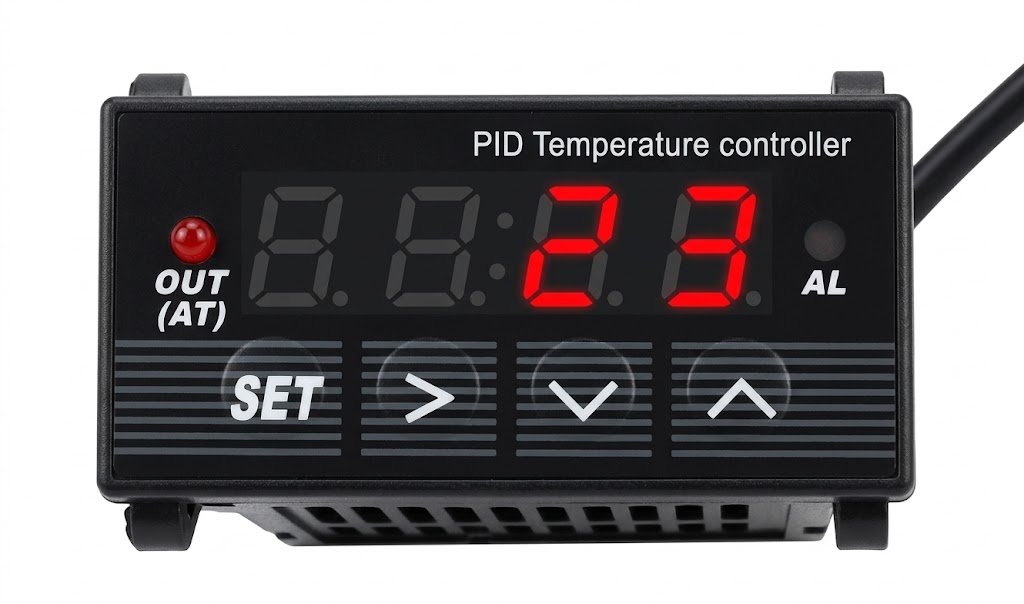

Please select LED Color (Red, Blue or Green) before buying the item.

The item has supper mini size 1/32 DIN (1x2x3" or 22.5 x 45 x75mm) for using on any kind of project that need small space like the car panel and Exhaust Gas Temperature (EGT) monitoring, small kilns that has small space for installing temperature controller.

It can be powered directly by any battery 12-24 VDC. It shows current temperature and also you can set your alarm temperature or set point too. The device will turn on a red output LED in the front panel to get attention if the temperature is above your set point and also you can set another over alarm for alarm output . So, It has 2 relay switch, one relay output and also one over alarm relay output that each output switch separately can be used to turn on a buzzer, shut off the fuel, or turn on a cooling fan. The meter will accept almost all type sensors (please check the following table) on the market and display the temperature on Fahrenheit or Celsius. The max temperature range for this device with K type probe is 2372 F (1300 C)

Item does not include an EGT K type thermocouple probe. The probe has 2” long. Cable length(2 meters) with Maximum working temperature: 1832F (1000C) .

If you need wire extension for 12-24VDC wiring please click Here

Control Method	PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control
Detective Temperature Range	32 to 2372 F or 0 to 1300 °C (with K type)
Display	Red, 4 Digit, C or F degree ,Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED
Input Signal	Thermocouple: K,E,S,B,J,T,R,WRe3/25, RTD, Pt100, Cu50
Accuracy	±0.2%F.S and display resolution is 0.1 C or 0.1 F degree
Control Way	PID with over and under temperature alarm output
Output mode	8VDC, 30mA (short circuit) for driving SSR module Also Equipped with a built-in relay (3Amp). Out1= switchable between buit-in Relay or external SSR
Alarm output	High limit alarm, lower limit alarm,
Proportional Band	0.1-99.9%
Integration time	2-1999 S
Derivative time	1-399 S
Working Power	12-24VDC
Out Dimension	1x2x3" or 24x48x75 mm compact size
Operation Ambient	0-50C , <RH85%
