Digital Temperature Controller 1/32 Din Pyrometer 12-24 VDC °C °F with K Type EGT Probe 2"

5/5 1 reviews / Write a review

Product Code: DTM-12V-EGT In Stock

USD44.99

Available Options

Choose required options before checkout.

Red Blue Green controller+TC Required

RED

BLUE

Green

Qty

Description

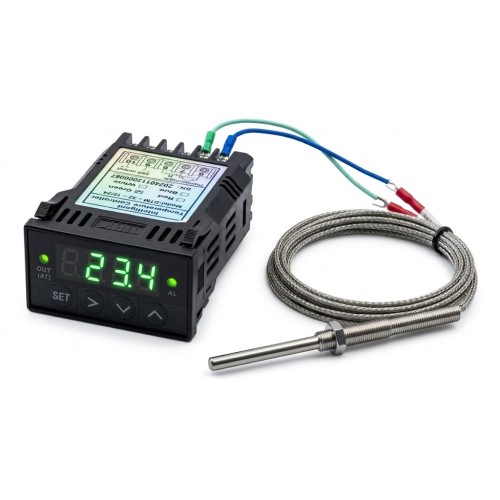

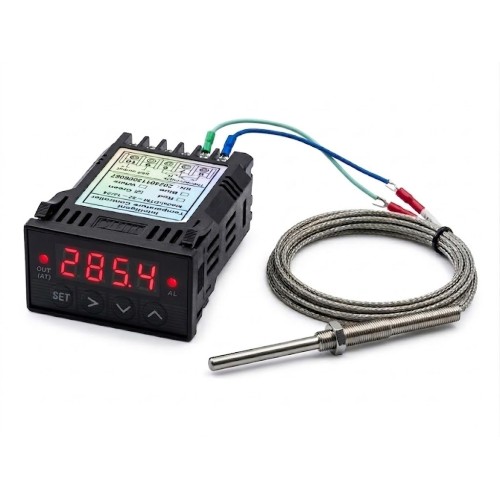

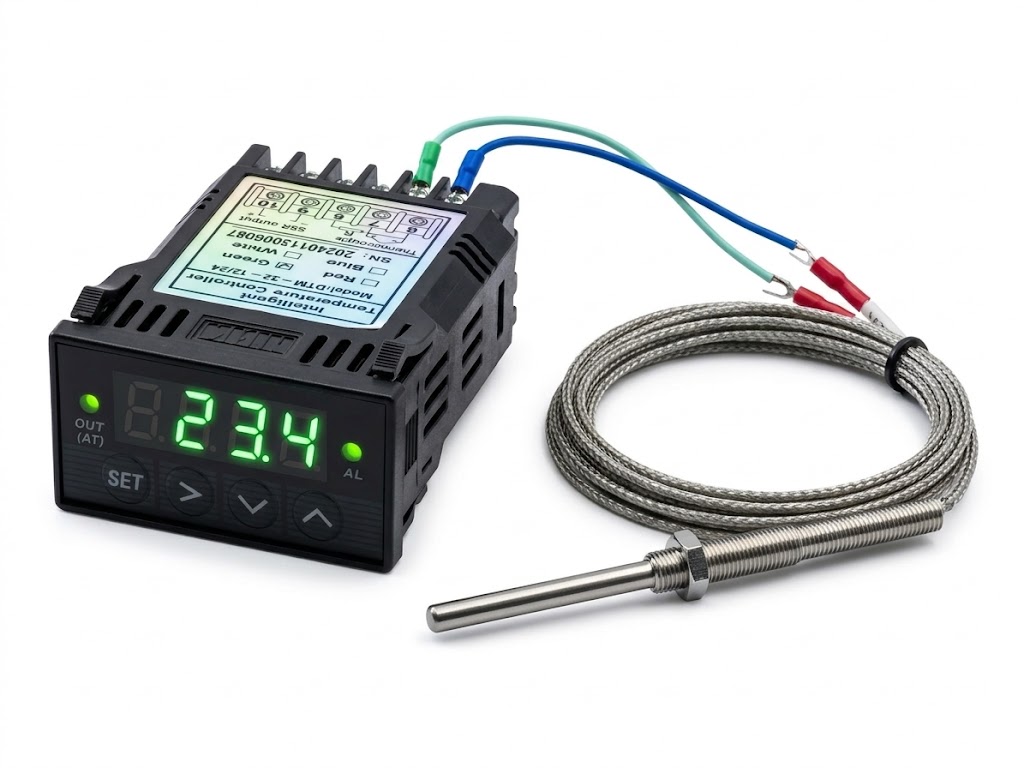

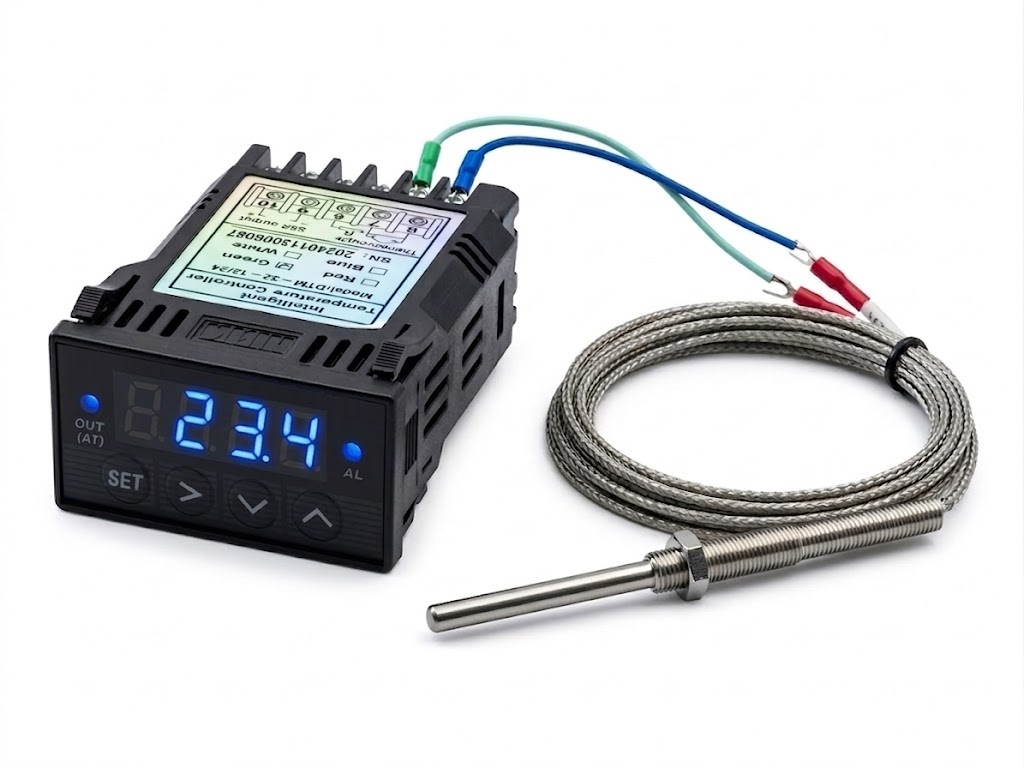

Digital EGT Temperature Controller °C °F with K Type EGT Probe

Please select LED Color (Red, Blue or Green) before buying the item.

The item has supper mini size 1/32 DIN (1x2x3" or 22.5 x 45 x75mm) for using on any kind of project that need small space like the car panel and Exhaust Gas Temperature (EGT) monitoring, small kilns that has small space for installing temperature controller.

It can be powered directly by any battery 12-24 VDC. It shows current temperature and also you can set your alarm temperature or set point too. The device will turn on a red output LED in the front panel to get attention if the temperature is above your set point and also you can set another over alarm for alarm output . So, It has 2 relay switch, one relay output and also one over alarm relay output that each output switch separately can be used to turn on a buzzer, shut off the fuel, or turn on a cooling fan. The meter will accept almost all type sensors (please check the following table) on the market and display the temperature on Fahrenheit or Celsius. The max temperature range for this device with K type probe is 2372 F (1300 C)

Item includes an EGT K type thermocouple probe. The probe has 2” long. Cable length(2 meters) with Maximum working temperature: 1832F (1000C) .

If you need wire for 12-24 VDC wiring please click this 26/2 AWG low-voltage wire

Control Method	PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control
Detective Temperature Range	32 to 2372 F or 0 to 1300 °C (with K type)
Display	Red, 4 Digit, C or F degree ,Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED
Input Signal	Thermocouple: K,E,S,B,J,T,R,WRe3/25, RTD, Pt100, Cu50
Accuracy	±0.2%F.S and display resolution is 0.1 C or 0.1 F degree
Control Way	PID with over and under temperature alarm output
Output mode	8VDC, 30mA (short circuit) for driving SSR module Also Equipped with a built-in relay (3Amp). Out1= switchable between built-in Relay or external SSR
Alarm output	High limit alarm, lower limit alarm,
Proportional Band	0.1-99.9%
Integration time	2-1999 S
Derivative time	1-399 S
Working Power	12-24 VDC
Out Dimension	1x2x3" or 24x48x75 mm compact size
Operation Ambient	0-50C , <RH85%
