PID Temperature Controller + SSR 40Amp+ Sensor

5/5 2 reviews / Write a review

Product Code: SVP-DTXG In Stock

USD59.99

Qty

Contact Support Returns Reviews

Description

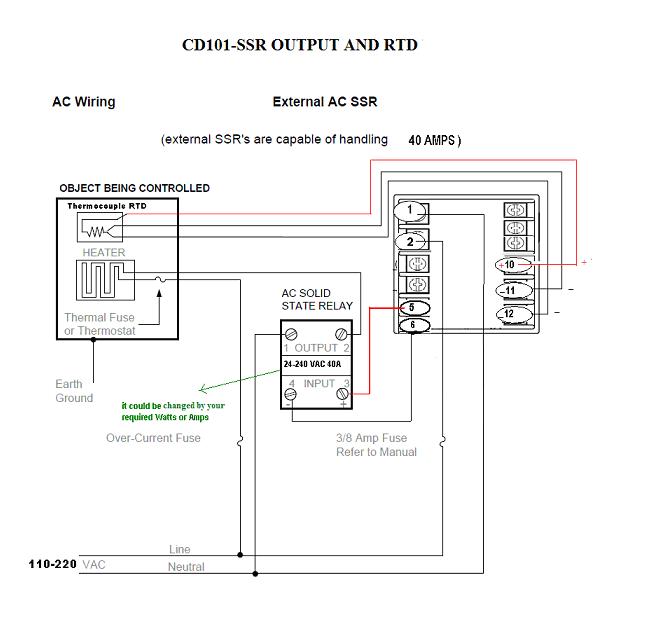

wiring this Controller + SSR + RTD sensor with its can precisely control the temperature of your system up to one decimal point precision.

It is an ideal solution for a wide range of professional applications to automatically control wide range of temperatures from -50 to 400 °C. The controller can work with 100-240VAC input.

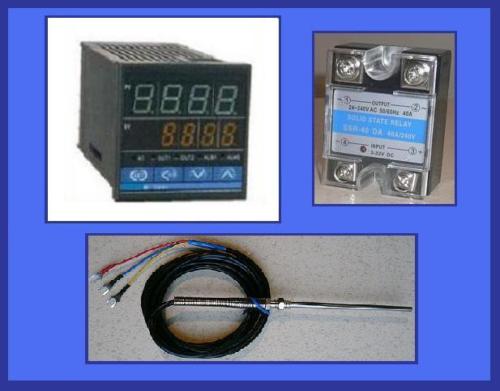

This valuable kit includes:

Item	Quantity
Dual Digital PID Temperature Controller with SSR Output.	1
Solid State Relay (40A), 24-240V AC	1
PT100 (RTD) temperature sensor probe with a M8 Fixing Screw, Flexible Spring and an Armored Wire Cable.	1

Specifications:

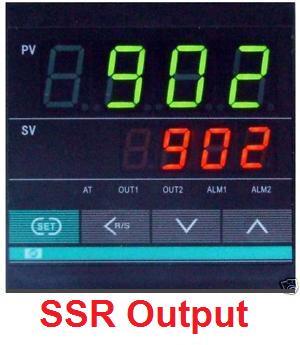

Dual Digital PID Temperature Controller

This Universal Intelligent Temperature Controller has a universal type thermocouple input, including Thermocouples K, J, R, S, B, E, T, N type and RTD (JPt100 or Pt100).

It is an ideal solution for a wide range of professional applications to automatically control temperatures of up to 1600 °C.

· This Controller has a SSR output.

· Out1 = SSR (heating side).

· It has a universal type input.

· When input is RTD (PT100), it shows temperature with one decimal point.

Control Method	PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control
Detective Temperature Range	0 to 1600 °C (depends on input type)
Display	Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED
Input Signal	- Thermocouple: K,E,S,B,J,T,R,N - RTD (PT100 or JPT100)
Accuracy	±0.5%F.S
Control Way	Fuzzy PID control, state control manual
Control Output	- Voltage impulse output (applicable for Solid State Relay, SSR). * Out1= SSR (heating or cooling side).
Alarm Type	High limit alarm, lower limit alarm, below lower limit alarm.
Junction	None
Working Power	AC 90 - 260V, 50-60 Hz
Out Dimension	48 x 48 x 75 mm
Install Dimension	45 x 45 mm

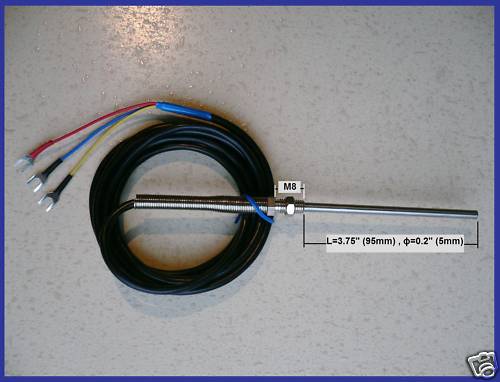

RTD (PT100)

This is a very practical and inexpensive PT100 with a M8 Fixing Screw, Flexible Spring and an Armored Wire Cable.
Its high quality probe is made of Stainless Steel and is 3.75 inch (95mm) long.
Its connector will work with Temperature Controllers.
It's easy to clean and easy to use.
