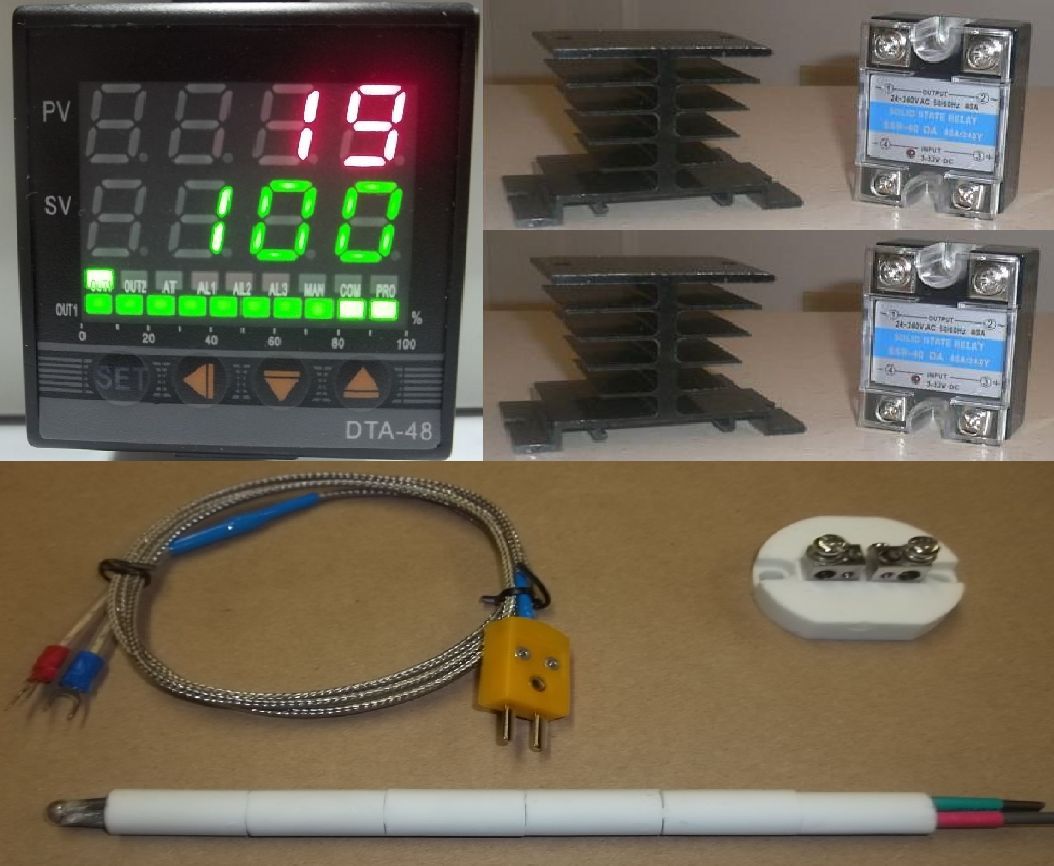

PID Temperature Controller+Thermocouple+2 x SSR+2Heatsink for 220V 2 hot line Kiln Paragon Pottery Glass Annealing

4.8/5 16 reviews / Write a review

Product Code: CKP-DTX-2SSR In Stock

USD81.50

Qty

Contact Support Returns Reviews

Description

This Valuable Package Includes:

Item	Quantity
Dual Digital PID Temperature Controller with SSR Outputs and with dual display ability of Fahrenheit and Celsius (F & C), selectable.	1

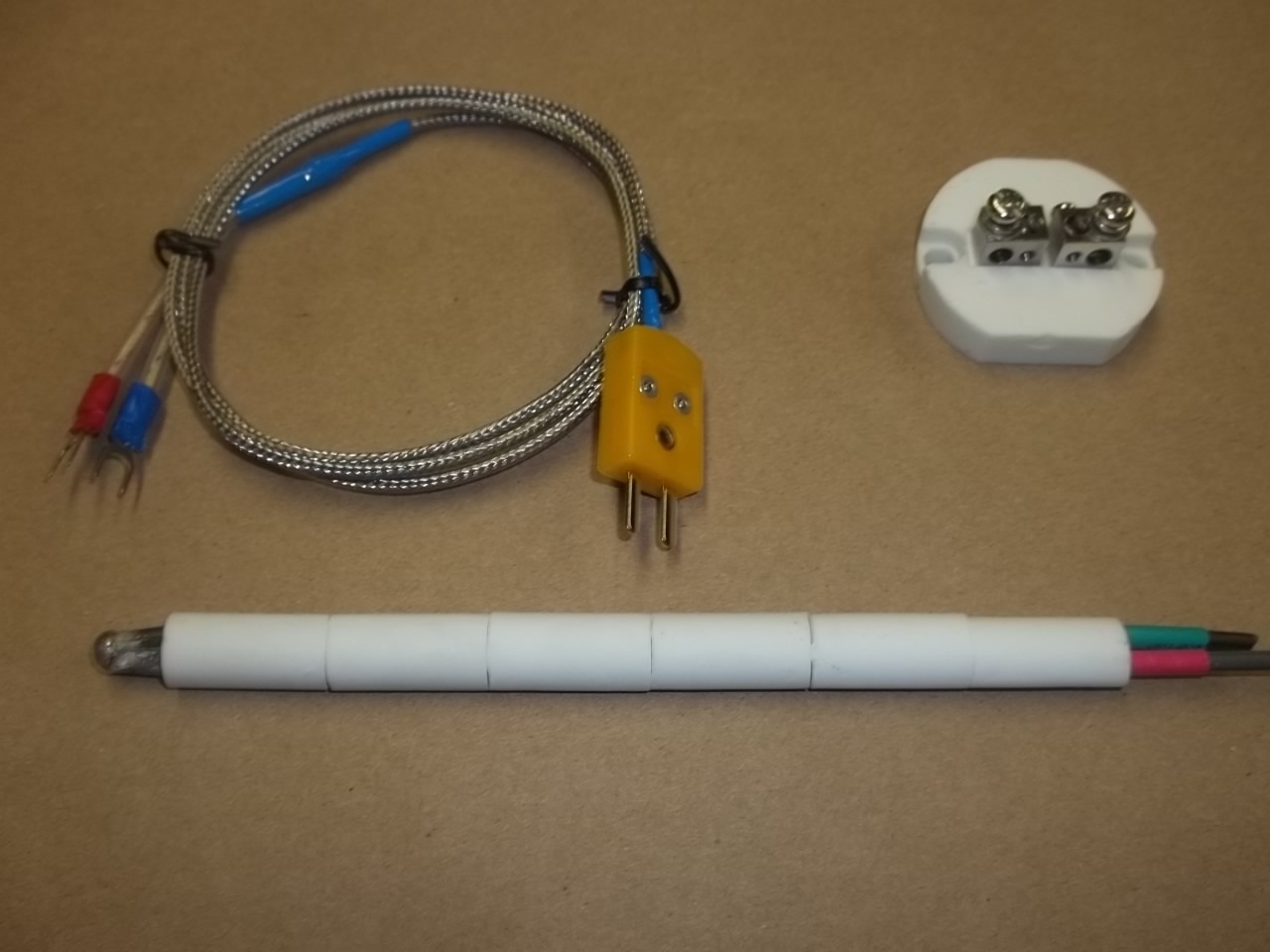

A length-adjustable Kiln Thermocouple with 6 pcs Ceramic insulator + Ceramic Terminal/Mountung block + 1m Wire Extension.	1

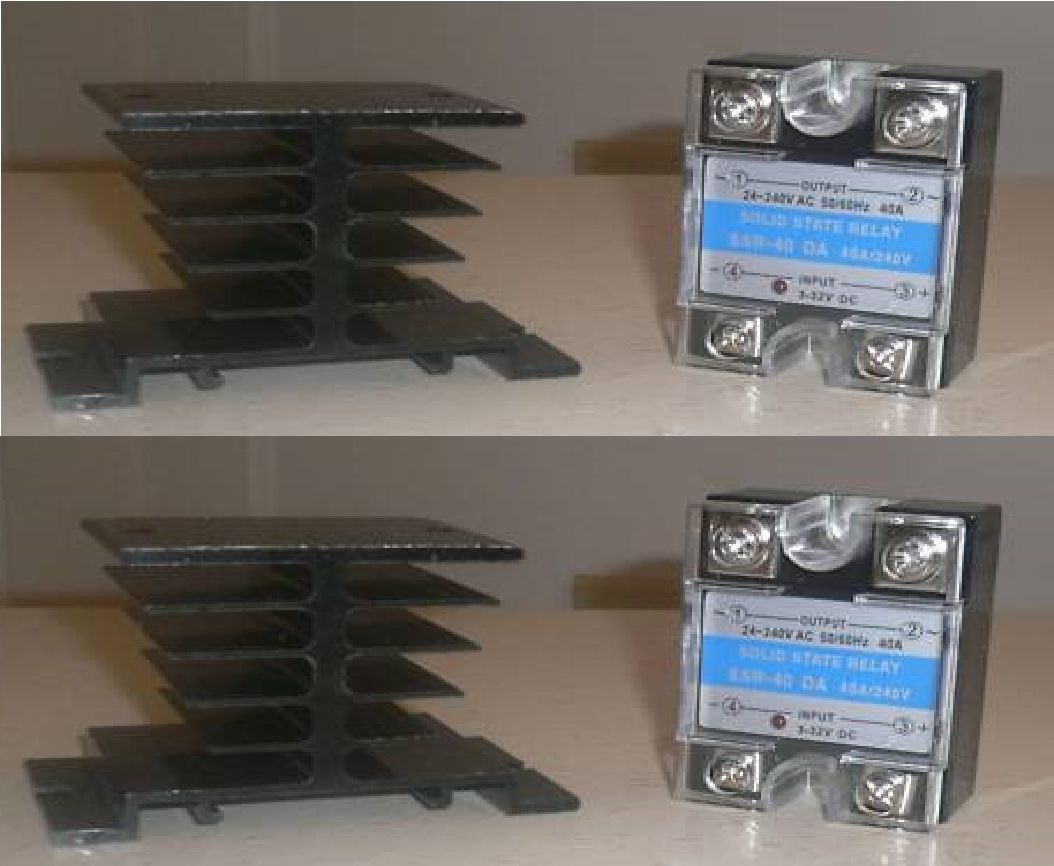

Solid State Relay (40A), 24-240V AC With Heat Sink (80 x 50 x 50 mm)	2

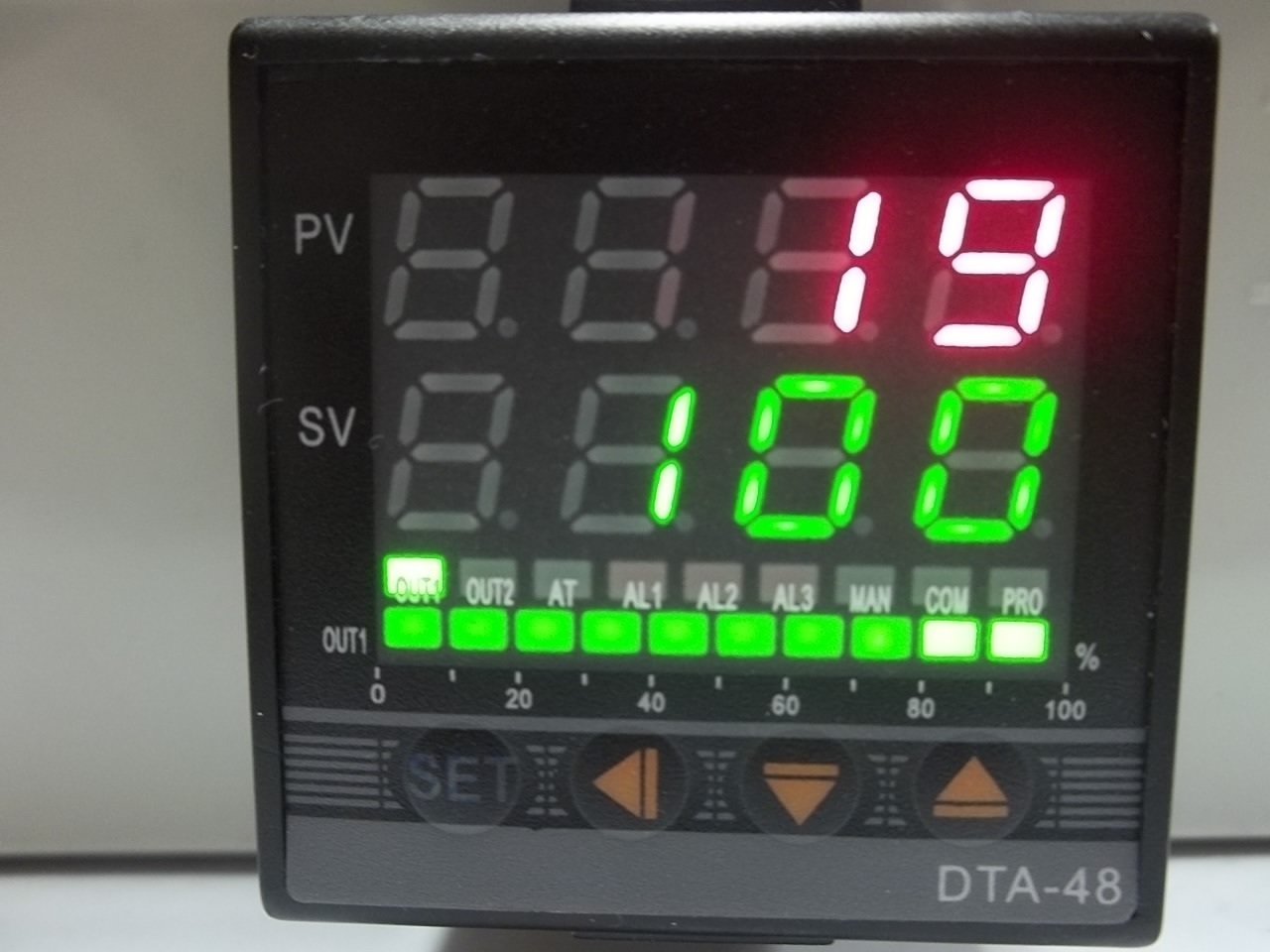

Professional Advanced PID Temperature Controller with SSR output & dual display ability °F / °C / A

This High performance - Intelligent Temperature Controller has a wide range of application and also following features:

Wide Range Selectable input (TC, RTD, Analog) Thermocouple(K,E,J,N,Wu3_Re25,S,T,R,B,) Pt100 ( Up to 800 C ) Voltage and Current (0-5VDC,0-10VDC,0-50mV,4-20mV,0-20mA2-10VDC, 1-5VDC, 4-20mA)

High Measuring accuracy, ±0.2% or ±1 unit of full input range, Wide range of power supply 90~260VAC, Super large and bright LED Display and Dual Line 4 digits display

Decimal points for all input signals. 0.1 resolution for thermocouple, 0.1 resolution for RTD and 0.001 for analog input, Alarm standby function

Output graphic bar indication (Output1 % percentage value indication),

Celsius or Fahrenheit display selected on user’s discretion. Also equipped with A parameter (like for measuring pressure for pressure transmitter)

Calibration function for sensor temperature correction , Overshoot protection for first power on or SV modify later, And more functions

Control	1) :P, PID ,PI, PD, ON/OFF(P=0) 2) Auto setting control
Temperature range	-328 ~ 3632 °F (-200 ~2000 °C) - depends on input type.
Display	- Process value (PV) - Setting value (SV): -1999 ~ +9999 - Output (Out1) - Alarm (ALM1) - Auto setting (AT) - Display: LED
Input	K (-200~+1300ºC), S (-50~+1600ºC), Wu3-Re25 (0~2000ºC ), R (-50~+1700ºC), T (0~400ºC), E (0~900ºC), J (0~800ºC), B (200~1800ºC), Pt100 (-200~800.0ºC) or (-200~+600ºC), mV,mA,VDC (-1999~+9999)
Accuracy Display Resolution	Measurement: ±0.2%FS Control Accuracy :+/- 1 Celsius Sampling period: 0.5s Decimal points for all input signals. 0.1 resolution for thermocouple, 0.1 resolution for RTD and 0.001 for analog input
Setting range	Setting value (SV): same range with PV
Control Output	Voltage impulse output (applicable for Solid State Relay / SSR). Out1= SSR (heating or cooling side). Alarm Output1= built in relay 5Amp/110V or 3Amp/220V
Working Power	90 – 260VAC, 50 – 60 Hz
Other Parameters	1) Insulation resistance: >50mΩ (500V DC) 2) Insulation strength: 1500V AC/min 3) Power Consumption:<10V 4) Service environment: 0~50 °C, 30~85RH, no corrosive gas
Outline Dimension	48 x 48 x 75mm (1/16 DIN)
