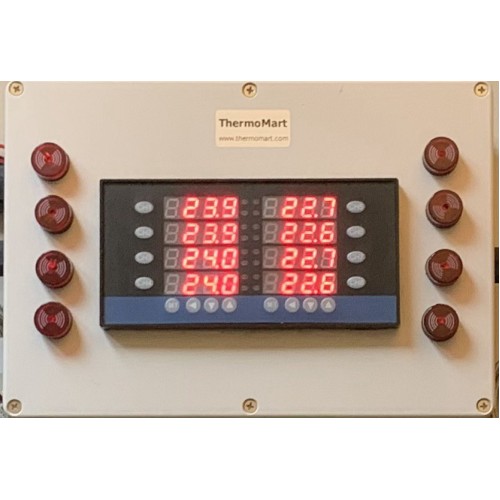

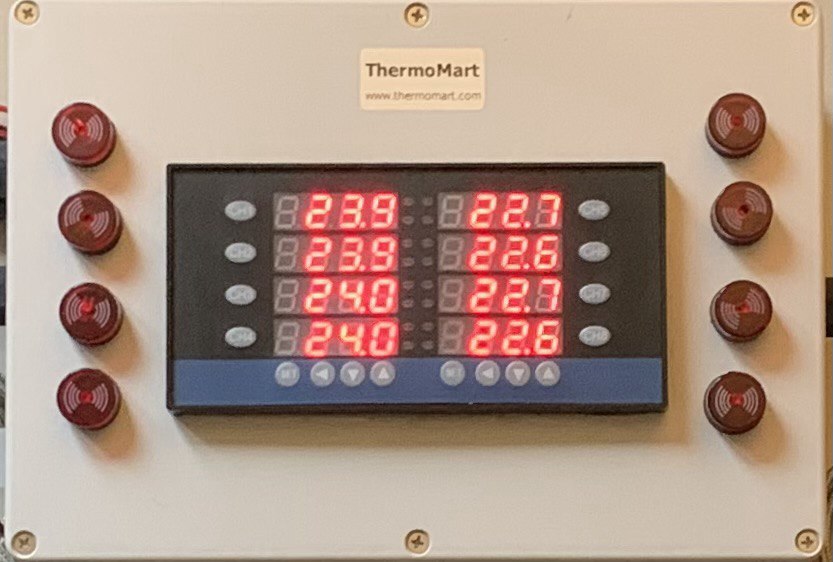

4 or 8 Channel Zone PID Temperature Controller Box Alarm USB RS485 Data Logger Recorder

4.8/5 9 reviews / Write a review

  • Product Code: 4-8CHA In Stock
  • USD320.00

Available Options

Choose required options before checkout.

Description

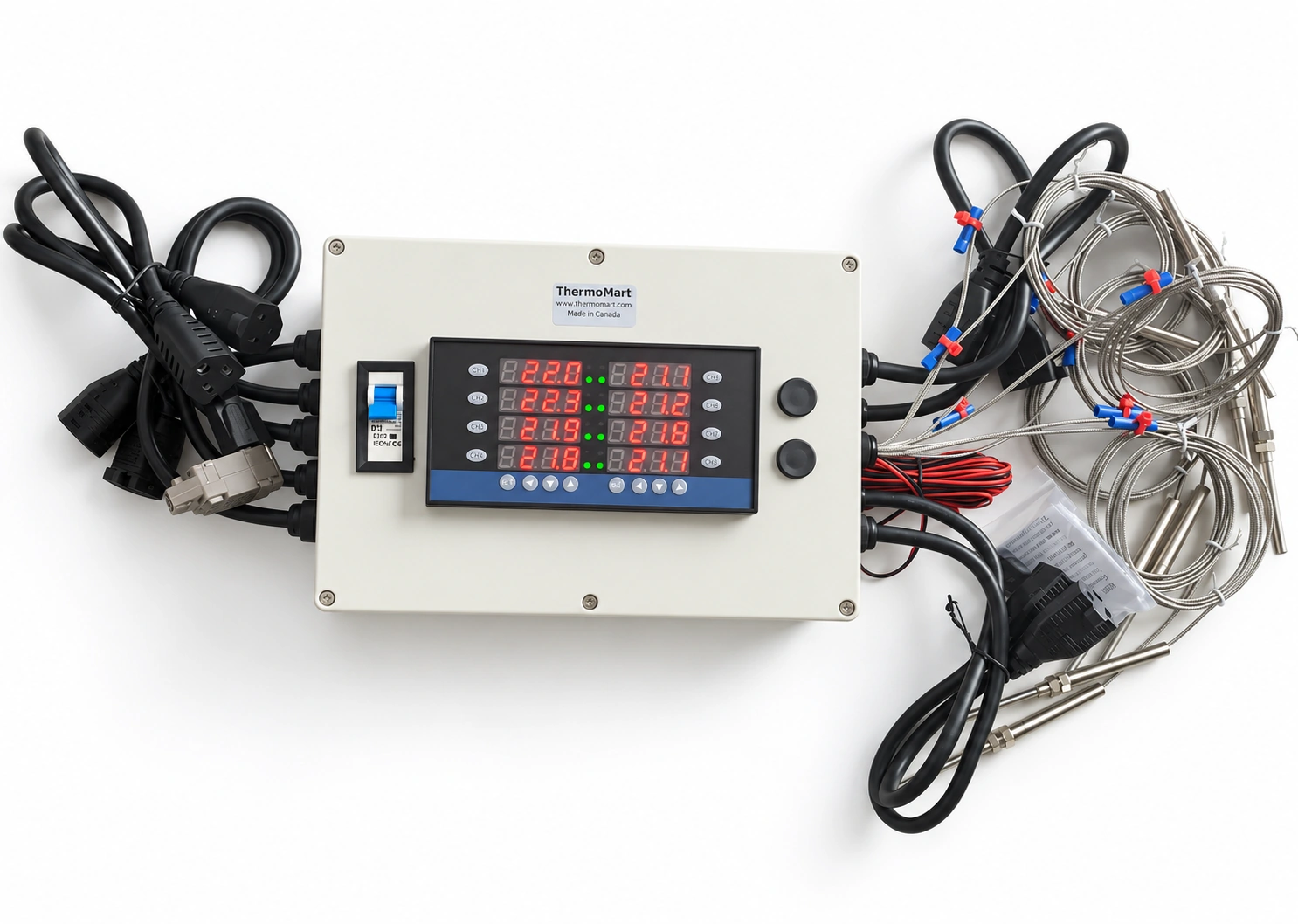

Please select between 4 channels or 8 channels when you want to buy this item.
USB Multi Channel Plug and Play PID Temperature Controller Recorder Date Logger Box with Buzzer and Flasher Alarm + USB to RS485 + 4 or 8 High Temperature Thermocouple 0-1000C (32-1832F). Please consider that you can change the thermocouples for higher temperatures. Display in either Fahrenheit or Celsius temperature unit and Decimal points.


This multi channels temperature controller box can connect with USB to your computer and you can set the alarm set point parameters, monitor, and record any zones temperatures separately by your computer. If the temperature passes each zone setpoint, the alarm related to each zone starts alarming. All channels are relay outputs (each output connected to separate buzzer alarm) and come with 4/8Thermocouples. You can extend the USB wire as long as (150m) you want to connect to your computer.

The software has a lot of functions like,
-Monitor and record temperature on Excel or graph by your needed interval time
-Easily Change or set the parameters on your computer and upload it on your temperature controller in a second
-Change the software setting for your needed reports
-The software supports Windows and does not work with MAC (you need to run Windows on your Mac)

Use this PID Temperature Controller when you wish to precisely record, monitor, and alarm the temperature of 4 objects at the same time with each set point zone.
Each zone has separate setpoint for each separate channel PID temperature controller and it is easy to set and comes with a user-friendly manual and USB/RS485 interface for connecting to a computer.


If you need a wire extension for the USB adaptor for data transferring please click this 26/2 AWG low-voltage wire

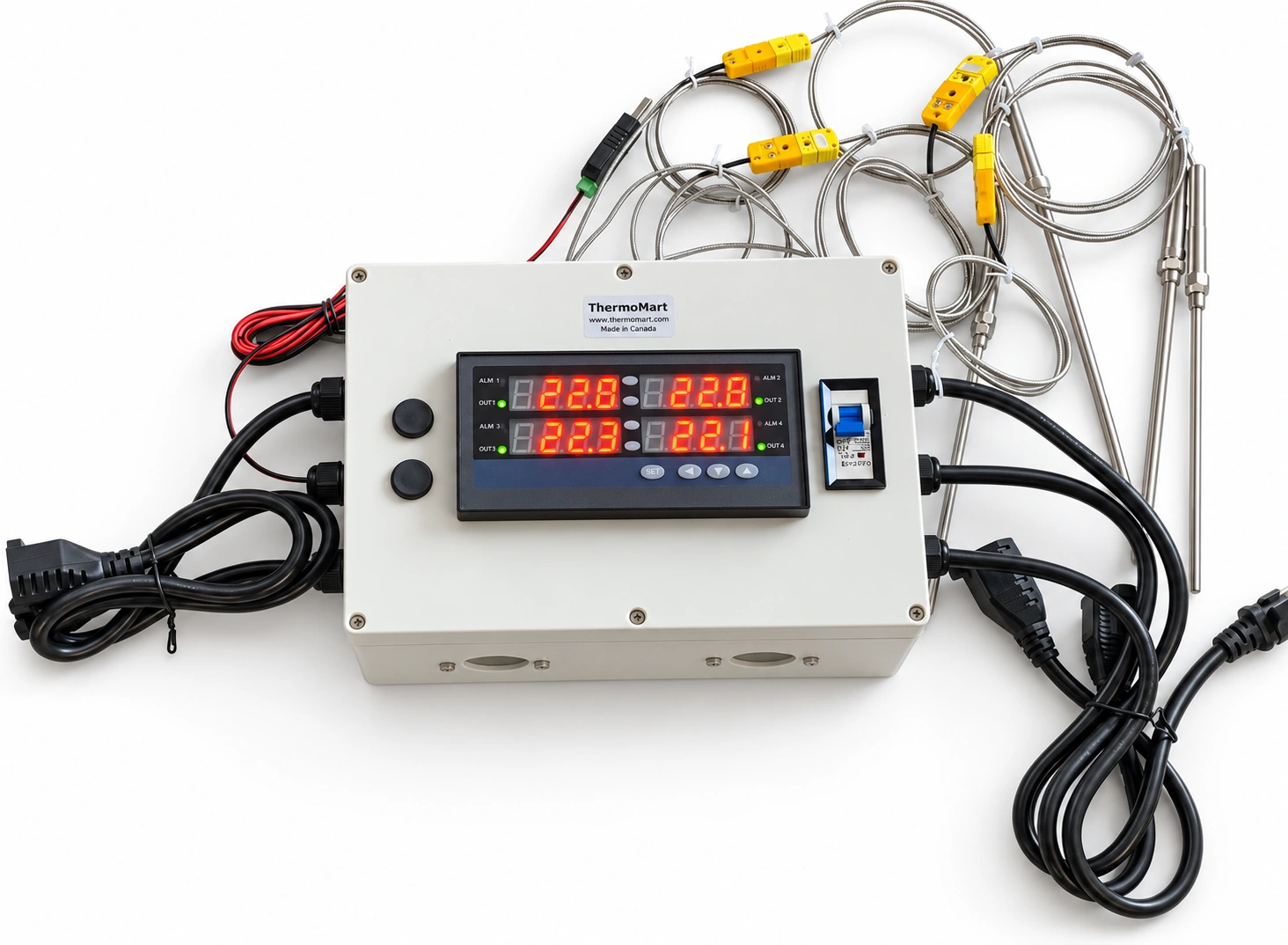

The item includes: 4 Channel Temperature controller recorder+Free Software+ USB Converter (for connecting temperature controller to your PC)+ Manual+ 4 thermocouples K type 400C

Controller Features & Specifications:

AUX output

USB RS485 for 4 channels

Detective Temperature Range

-58 to 2372 °-50 to 1300 °C (depends on input type)

Unit Display

Selectable between Celsius and Fahrenheit

Input

Thermocouple: (K,E,J,T,S)
RTD: (Cu50, PT100)

Output

Relay Output, can connect for any application like buzzer alarm, fan, turn off switch,...

Control action

Heating , Cooling

Response time

Less than 0.5S (configurable)

Accuracy

0.2%FS+- 0.1C(Cu50 cooper resistor compensation or ice point compensation)
0.2%FS+0.2C (TC input and internal compensation)

Temperature drift

Less than 0.01%FS 0C (Typical value is 50ppm/0C)

Resolution

10C or 0.10C(automatically change to 10C when the temperature is higher than 999)

Display

Dual line - four digit - LED display

Decimal points

Configurable for all inputs

Control Method

ON/OFF

AI MPT with auto tuning, adopting fuzzy logic PID algorithm

Auto/Manual Control

Auto/manual bump less transfer from front panel

Auto-tuning

Auto-tuning and manual tuning available

Software

Work with Windows

Software functions

Change parameter setting and save them, upload, record, export to Excel, make a graph and .... by your computer

Soft start function

In some particular application, 100% output ratio is not allowed when the power just turned on; soft start function is a great feature to solve this problem.

Decimal point

For all inputs

Power Supply

90~260VAC

Dimension (DIN 1/16)

96mm*96mm*90mm

Mounting

Panel Mount

Manual
If you cannot download the software please right click on the hyperlink to the software and select “open link in incognito window”. And then on the new incognito opened window select the URL address on the URL bar and click enter and it starts downloading the software.
