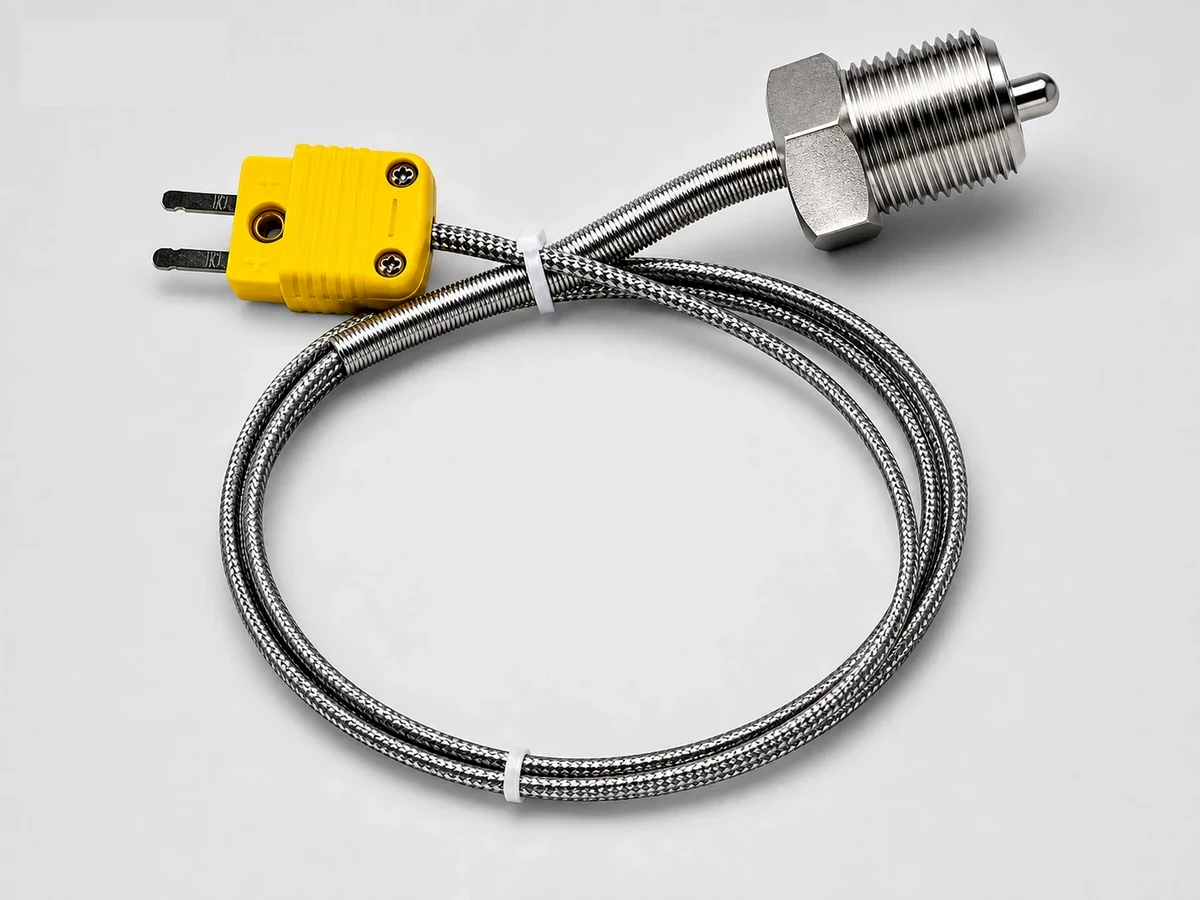

K-Type EGT Exhaust Gas Temperature Probe - 1/2 NPT
This K-type EGT thermocouple probe is made for exhaust gas temperature monitoring, tuning, testing and high-temperature control applications. It uses a compact straight sensing tip, 1/2 NPT threaded stainless probe body, stainless steel braided cable and a mini K-type connector for easy connection to compatible gauges, meters, PID controllers and data loggers.

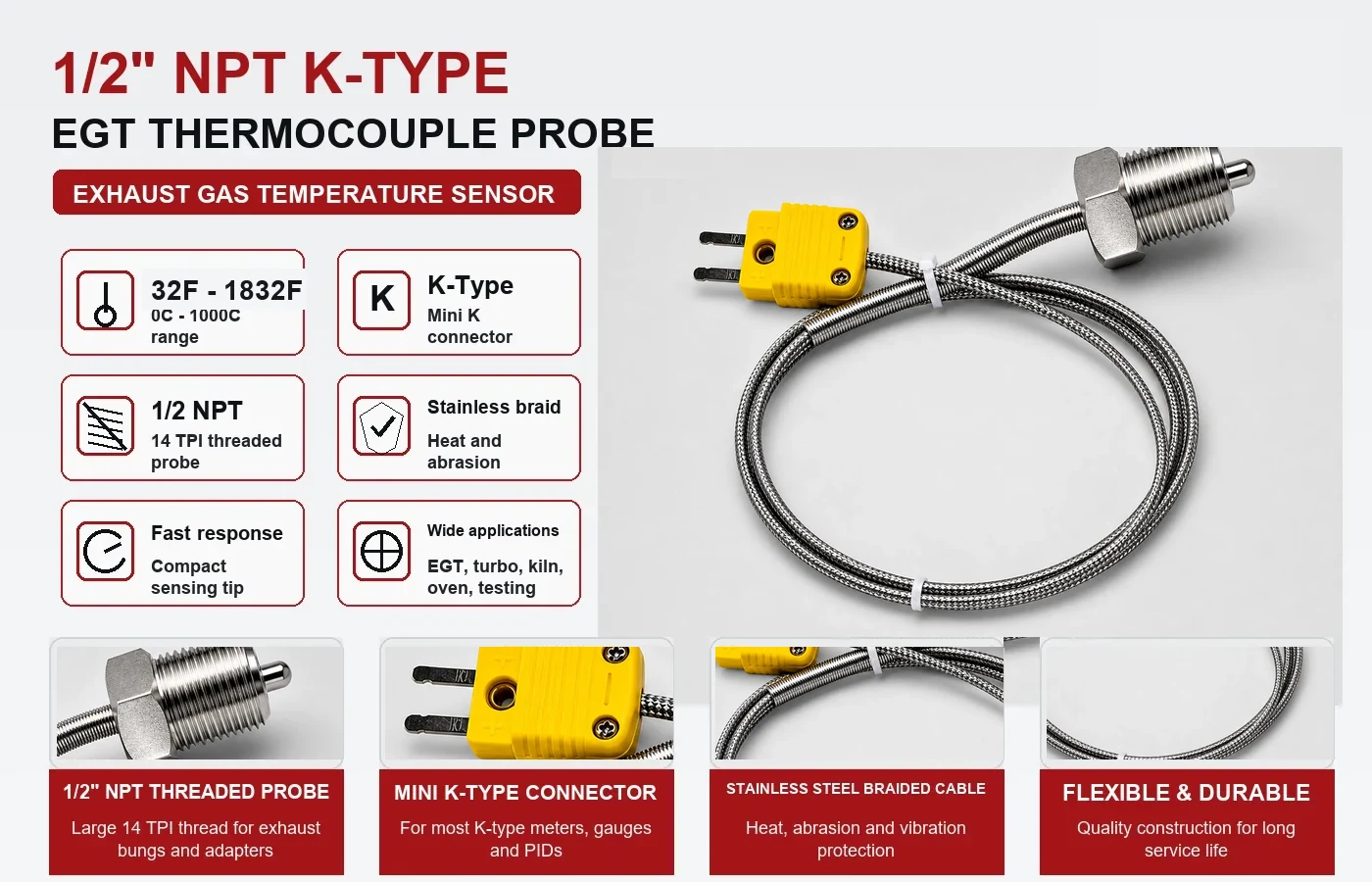

Key Features
- K-type thermocouple probe for exhaust gas temperature and high-temperature measurement

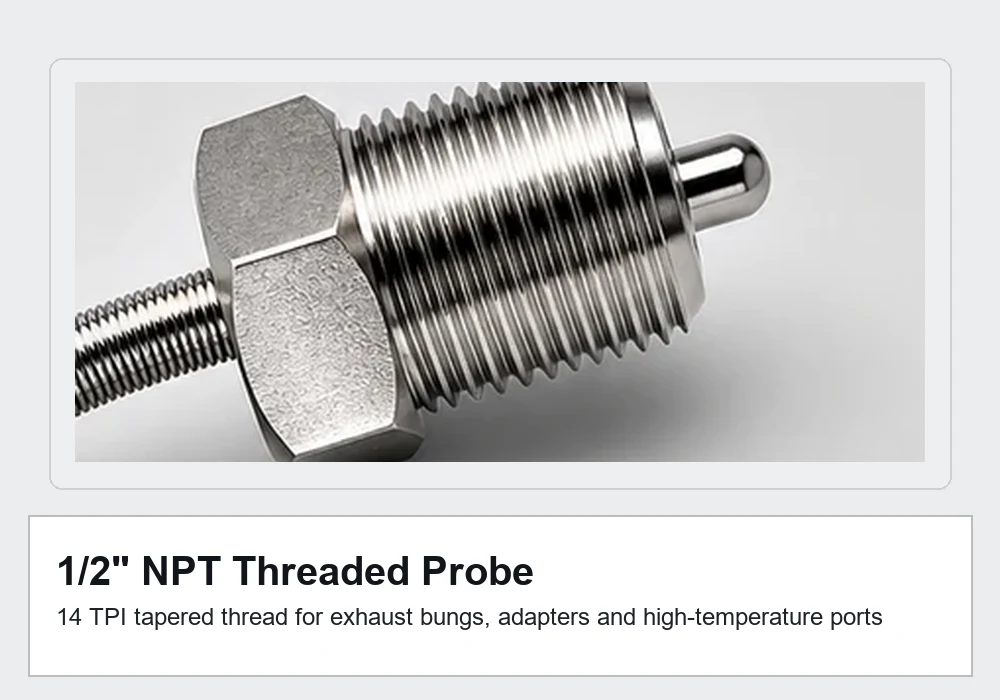

- 1/2 NPT tapered thread, 14 TPI, for exhaust bungs, adapters and high-temperature ports
- Wide measurement range: 32°F to 1832°F (0°C to 1000°C)
- Stainless steel braided cable helps protect against heat, abrasion and vibration

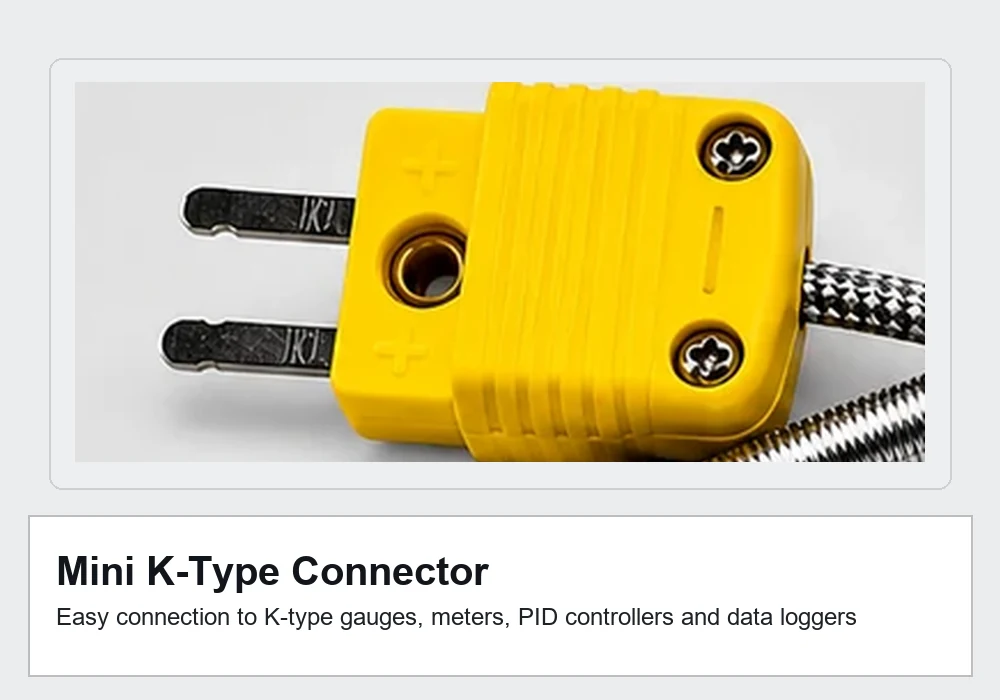

- Mini K-type flat pin connector for quick connection to most K-type thermometers, EGT gauges and PID controllers
- Fast response compact tip for engine tuning, exhaust monitoring and process temperature checks
Applications

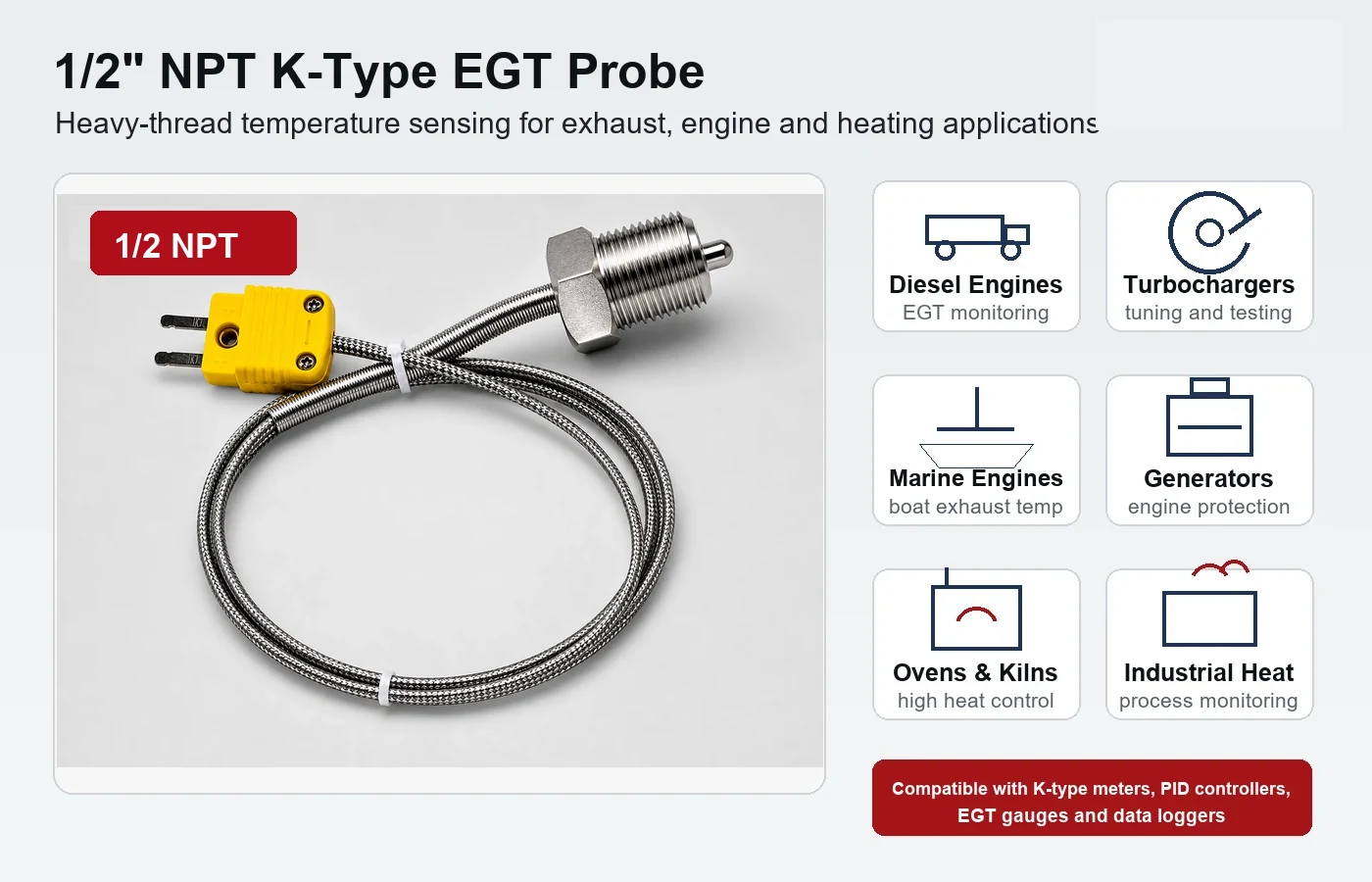

Suitable for diesel engines, turbocharger tuning, EGT gauge installations, generators, marine engines, exhaust manifolds, ovens, kilns, furnaces, smokers, heating equipment and lab or workshop testing where a 1/2 NPT K-type thermocouple probe is required.
Specifications
| Thermocouple type | K type |
| Thread size | 1/2 NPT, 14 TPI |
| Temperature range | 32°F to 1832°F (0°C to 1000°C) |
| Cable protection | Stainless steel braided shield |
| Connector | Mini K-type flat pin connector |
| Cable length | Approx. 3.3 ft (1 m) |
Note: This listing is for the 1/2 NPT version. For installations requiring a smaller thread, choose the 1/8 NPT or 1/4 NPT version instead.
1/2 NPT K-Type EGT Exhaust Gas Temperature Probe
- Product Code: EGT-1/2NPT
- Availability: In Stock
-
USD21.99
